Introduction

This page is about using AWS and Angular and how to provision the apps in AWS

S3

This is a easy approach for simple all in one app. I.E. no database or other communication. Steps to do this are

Create a bucket
Enable Web Static Hosting
Grant Permissions
Upload Bucket

Create Bucket

Nothing special except the naming of the bucket as it determines the URL of the app. So a bucket named bill-angular-prod-app will have a URL of http://bill-angular-prod-app.s3-website-ap-southeast-2.amazonaws.com where ap-southeast-2 is the region.

Enable Web Static Hosting

You will need to enable Static website hosting under properties for this to work and set the index and error document.

Grant Permissions

To allow public access you will need to disable Block public access which is on by default. Additionally you will need to add a Bucket policy. I did not have permission for mine but was able to on another account.


{
    "Version": "2012-10-17",
    "Statement": [
        {
            "Sid": "AddPermission",
            "Effect": "Allow",
            "Principal": "*",
            "Action": "s3:GetObject",
            "Resource": "arn:aws:s3:::bill-angular-prod-app/*"
        }
    ]
}

Upload Bucket

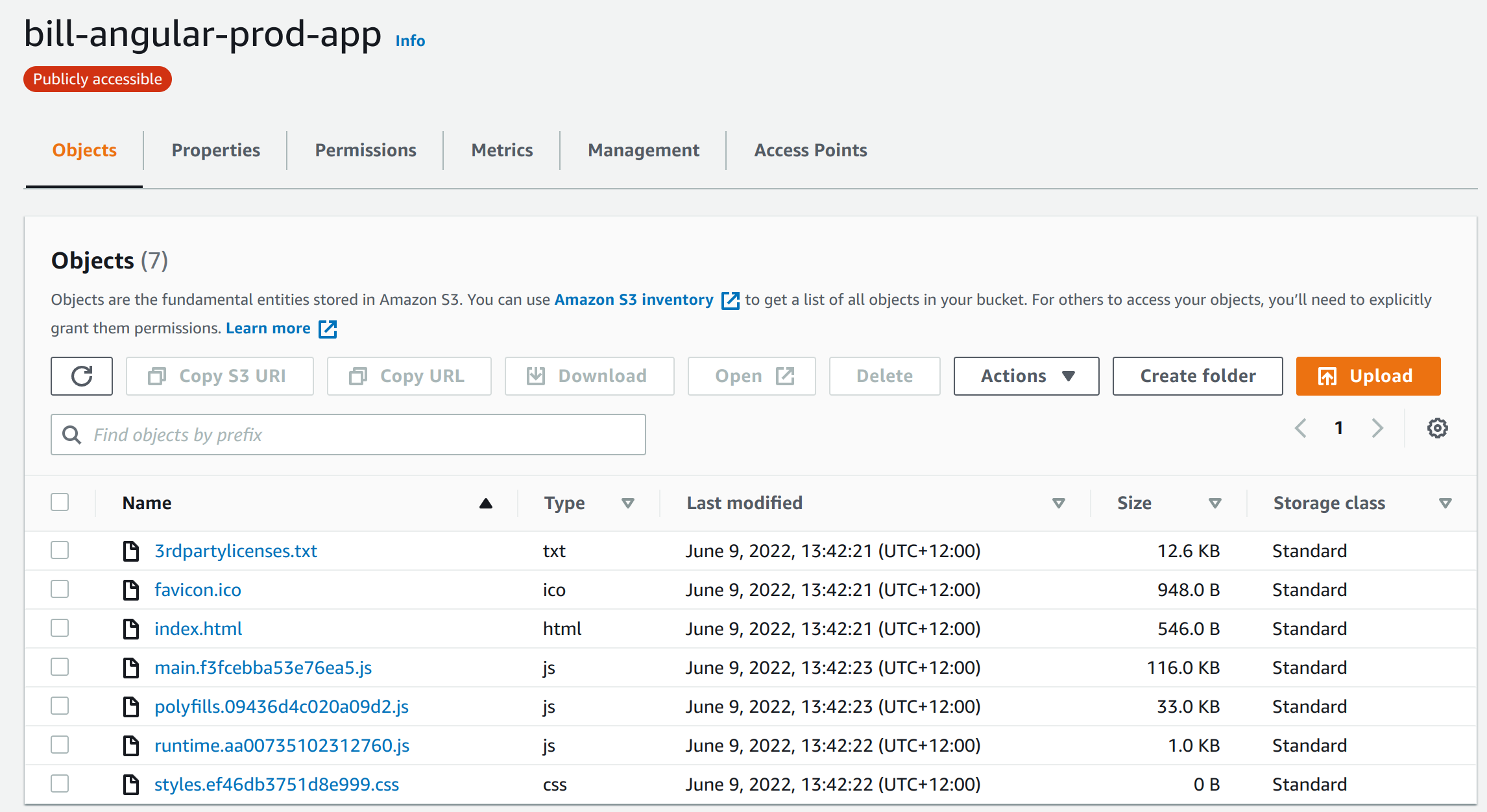

No issues here just point you upload folder. Here is a picture to help.

EKS Elastic Kubernetes Service

This is probably the better approach. AWS offer it's own Kubernetes which provides service on top of the standard offering. For this example I have used a sample project from GitHub to show the steps. This is end-to-end so includes parts not necessarily AWS.

Prerequisites
- Create key pair
- Install AWS CLI
- Install eksctl
- Install kubectl
- Install aws-iam-authenticator
AWS CLI and MFA
Create Test Project
- Clone Project
- Build Project
Dockerize Project
- Define Dockfile
- Build Docker Project
Store Docker Image
- Login to ecr (Elastic Container Registry)
- Create Repository
- Tag and Push Image
Create Cluster
- Create Cluster Role
- Create Cluster
- Add VPC CNI
- Update Cluster config
Create Node Group
- Create Managed Node IAM Role
- Create Managed Node Group
- Perform Deoloyment

Prerequisites

Create Key Pair

We need this when creating node groups.


aws ec2 create-key-pair \
    --key-name bills-key-pair \
    --key-type rsa \
    --key-format pem \
    --query "KeyMaterial" \
    --output text > bills-key-pair.pem

Install AWS CLI

Ezzy pezzy lemon Squezzy


curl "https://awscli.amazonaws.com/awscli-exe-linux-x86_64.zip" -o "awscliv2.zip"
unzip awscliv2.zip
sudo ./aws/install

Install eksctl

Ezzy pezzy lemon Squezzy 2


curl --silent --location "https://github.com/weaveworks/eksctl/releases/latest/download/eksctl_$(uname -s)_amd64.tar.gz" | tar xz -C /tmp
sudo mv /tmp/eksctl /usr/local/bin

Install kubectl

Ezzy pezzy lemon Squezzy 3


sudo apt-get install -y apt-transport-https ca-certificates curl
sudo curl -fsSLo /usr/share/keyrings/kubernetes-archive-keyring.gpg https://packages.cloud.google.com/apt/doc/apt-key.gpg
echo "deb [signed-by=/usr/share/keyrings/kubernetes-archive-keyring.gpg] https://apt.kubernetes.io/ kubernetes-xenial main" | sudo tee /etc/apt/sources.list.d/kubernetes.list
sudo apt-get update
sudo apt-get install -y kubectl

Install aws-iam-authenticator

For me ~/bin is already in the path


curl -o aws-iam-authenticator https://s3.us-west-2.amazonaws.com/amazon-eks/1.21.2/2021-07-05/bin/linux/amd64/aws-iam-authenticator
chmod +x ./aws-iam-authenticator
mkdir -p $HOME/bin && cp ./aws-iam-authenticator $HOME/bin/aws-iam-authenticator && export PATH=$PATH:$HOME/bin
echo 'export PATH=$PATH:$HOME/bin' >> ~/.bashrc

AWS CLI and MFA

This was possibly the thing that took the most time. Not clearly specified with the error message so here is how you do it.

Get MFA Device Number (MFA_NUM)
Get Code from Device (CODE_FROM_MFA)
Get Values for environment variables
Set config and credential files

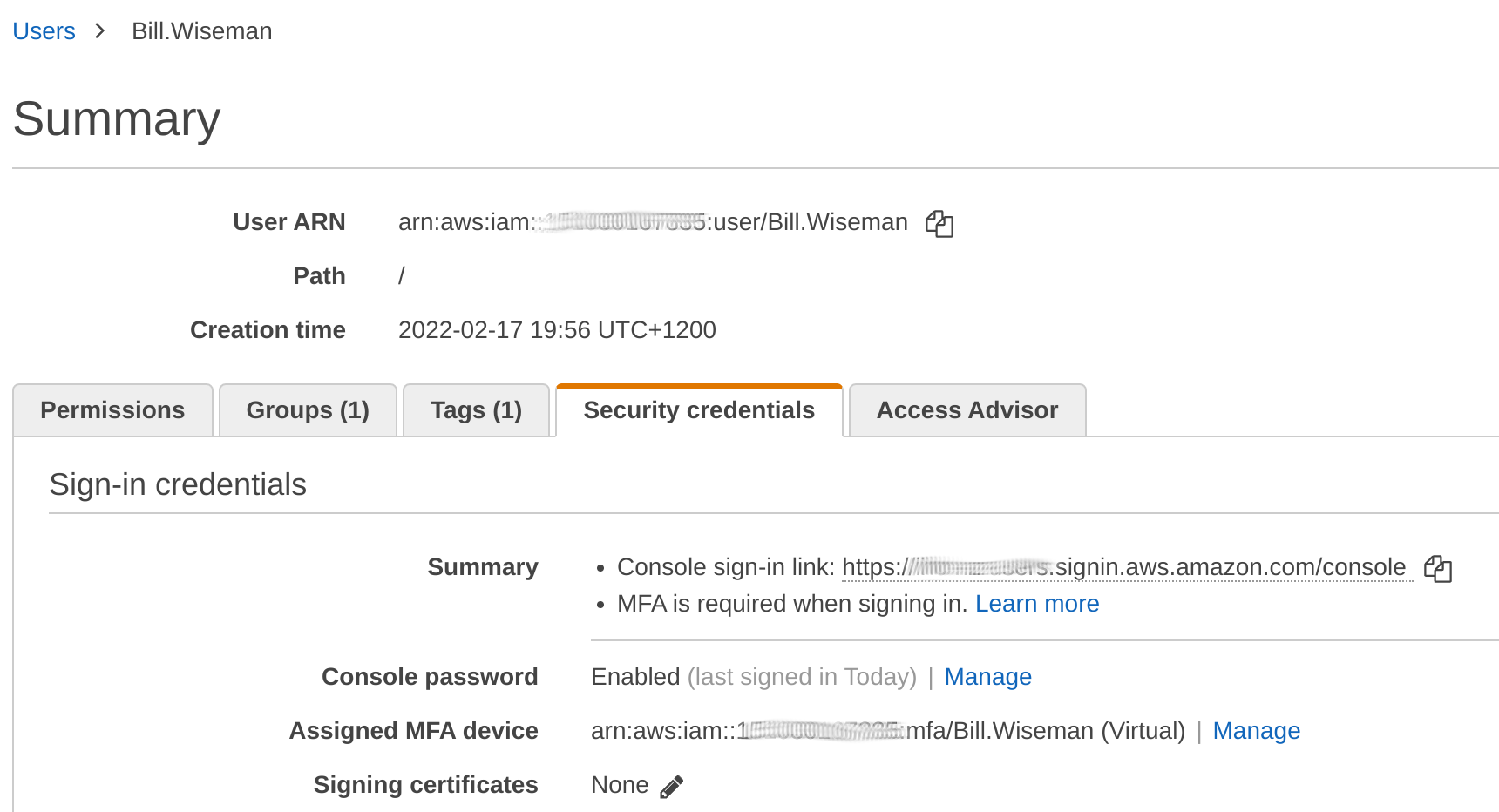

Get MFA Device Number (MFA_NUM)

We need to get this number to use in subsequent steps. MFA_NUM is the number of the MFA device on your AWS profile.

We can also do this with the following command. Note to get the MFA device you will use the <username> AWS_PROFILE not <username>-dev mentioned later


aws iam list-mfa-devices --user-name <username>

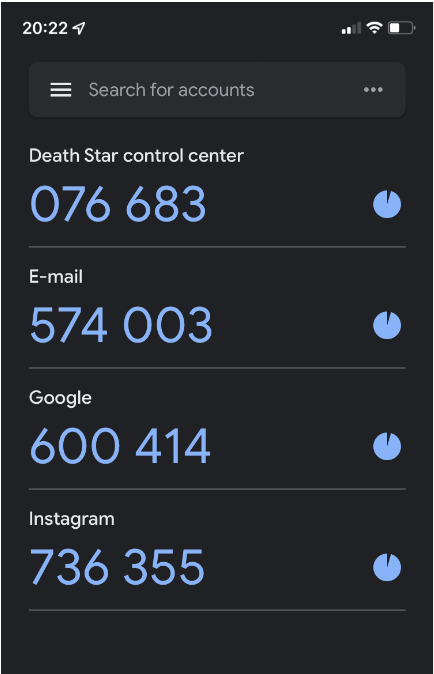

Get Code from Device (CODE_FROM_MFA)

The is the code you use when you sign into the console. CODE_FROM_MFA is taken from the authenticator app

Get Values for environment variables

We need to have the three environment variables. aws_access_key_id, aws_secret_access_key, aws_session_token. These are used in .aws/config and .aws/credentials. To get the values use the following command.

 aws sts get-session-token --serial-number MFA_NUM --token-code CODE_FROM_MFA

This returns


{
    "Credentials": {
        "AccessKeyId": blahblah_ID,
        "SecretAccessKey": blahblah_KEY,
        "SessionToken": blahblah_TOKEN,
        "Expiration": "2019-07-12T01:14:07Z"
    }
}

Set config and credential files

For using the AWs cli we have .aws/config and .aws/credentials.

.aws/credentials:


[mfa]
aws_access_key_id = ID_FROM_ABOVE
aws_secret_access_key = KEY_FROM_ABOVE
aws_session_token = TOKEN_FROM_ABOVE

.aws/config:


[mfa]
output = json
region = us-east-1

[profile secondaccount]
role_arn = arn:aws:iam::<SECOND_ACCOUNT_ID>:role/admin
source_profile = mfa

Finally

 export AWS_PROFILE=secondaccount

Now when running

 aws sts get-caller-identity

Should return the assumed role.
Here is my current exmample


[mfa]
aws_access_key_id=ASxxxxxxxxxxxxxxxxxx
aws_secret_access_key=JYxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxx
aws_session_token=xxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxx0=

[fred.bloggs-dev]
role_arn=arn:aws:iam::xxxxxxxxxxxx:role/Administrator
source_profile = mfa

Create Test Angular Project

Clone Project

Clone the project


git clone https://github.com/bbachi/angular-nginx-example.git

Build Project

install Angular dependencies and start


cd my-app
npm install
npm start

Create Test React Project

Create React Project


npx create-react-app test-app --template typescript

Build Project

install React dependencies and start


cd test-app
npm install
npm start

Dockerize Project

Define Dockfile

In the root of the clone, not my-app but the one before add a Dockerfile.



FROM node:10 AS ui-build
WORKDIR /usr/src/app
COPY my-app/ ./my-app/
RUN cd my-app && npm install @angular/cli && npm install && npm run build


FROM nginx:alpine

#!/bin/sh

COPY ./.nginx/nginx.conf /etc/nginx/nginx.conf

## Remove default nginx index page
RUN rm -rf /usr/share/nginx/html/*

# Copy from the stahg 1
COPY --from=ui-build /usr/src/app/my-app/dist/angular-nodejs-example/ /usr/share/nginx/html

EXPOSE 4200 80

ENTRYPOINT ["nginx", "-g", "daemon off;"]

Build Docker Project

You only need the first command, other commands for information only.


# build the image
docker build -t ang-nginx-ui .
# run the image
docker run -d --name ang-nginx-webapp -p 80:80 ang-nginx-ui
#list the image you just built
docker images
# list the container
docker ps

Store Docker Image

Login to ecr (Elastic Container Registry)

We are going to create a repository to store our container. This is the equivalent of dockerhub but an AWS version. Before doing this we need to authenticate. This can be done with the following.

 aws ecr get-login-password --region ap-southeast-2 | docker login --username AWS --password-stdin aws_account_id.dkr.ecr.ap-southeast-2.amazonaws.com

The ap-southeast-2 is the region and the aws_account_id is the id from the console.

Create Repository

And to create the repository we can now do:

 aws ecr create-repository \
      --repository-name bill/angular-app \
      --image-scanning-configuration scanOnPush=true \
      --image-tag-mutability IMMUTABLE \
      --region ap-southeast-2

Tag and Push Image

First we tag the image with

 docker tag ang-nginx-ui:latest aws_account_id.dkr.ecr.ap-southeast-2.amazonaws.com/bill/angular-app:v1

Now we can push the image as we would with dockerhub

 docker push aws_account_id.dkr.ecr.ap-southeast-2.amazonaws.com/bill/angular-app:v1

Create Cluster

Create Cluster Role

Next create the role to manage the cluster we do this with the following file and two commands (copied from docs [1])


{
  "Version": "2012-10-17",
  "Statement": [
    {
      "Effect": "Allow",
      "Principal": {
        "Service": "eks.amazonaws.com"
      },
      "Action": "sts:AssumeRole"
    }
  ]
}

 aws iam create-role --role-name eksBillsClusterRole  --assume-role-policy-document file://"cluster-trust-policy.json"
 aws iam attach-role-policy --policy-arn arn:aws:iam::aws:policy/AmazonEKSClusterPolicy --role-name eksBillsClusterRole

Create Cluster

To create the cluster I need to create a VPC. To do this I followed the documentation at [2]

For the cluster I again looked at the documentation [3] which showed the following command.

 aws eks create-cluster \
    --region ap-southeast-2 \
    --name bills-cluster \
    --kubernetes-version 1.22 \
    --role-arn arn:aws:iam::xxxxxxxxxxxxx:role/eksBillsClusterRole \
    --resources-vpc-config subnetIds=subnet-xxxxxxxx,subnet-xxxxxxxxx,securityGroupIds=sg-xxxxxxx

Add VPC CNI

This is required otherwise

aws eks create-addon \
    --cluster-name bills-cluster \
    --addon-name vpc-cni \
    --addon-version v1.11.0-eksbuild.1 \
    --service-account-role-arn arn:aws:iam::xxxxxxxxx:role/eksBillsClusterRole \
    --resolve-conflicts OVERWRITE

Update Cluster config

This command creates a .kube/config for the cluster

aws eks update-kubeconfig --name bills-cluster

Create Node

Create Managed Node IAM Role

We need to create a role for our nodes we do this with the following file and commands

{
  "Version": "2012-10-17",
  "Statement": [
    {
      "Effect": "Allow",
      "Principal": {
        "Service": "ec2.amazonaws.com"
      },
      "Action": "sts:AssumeRole"
    }
  ]
}

 aws iam create-role \
   --role-name AmazonEKSNodeRole \
   --assume-role-policy-document file://"node-role-trust-relationship.json"

 aws iam attach-role-policy \
   --policy-arn arn:aws:iam::aws:policy/AmazonEKSWorkerNodePolicy \
   --role-name AmazonEKSNodeRole

  aws iam attach-role-policy \
    --policy-arn arn:aws:iam::aws:policy/AmazonEC2ContainerRegistryReadOnly \
    --role-name AmazonEKSNodeRole

  aws iam attach-role-policy \
     --policy-arn arn:aws:iam::aws:policy/AmazonEKS_CNI_Policy \
     --role-name AmazonEKSNodeRole

Create Managed Node Group

Now we can create the managed node group. Make sure you have created a key pair and cluster first.

 eksctl create nodegroup \
   --cluster bills-cluster \
   --region ap-southeast-2 \
   --name bills-mng \
   --node-type m5.large \
   --nodes 3 \
   --nodes-min 2 \
   --nodes-max 4 \
   --ssh-access \
   --ssh-public-key bills-key

The above would not work so used
 aws eks create-nodegroup \
   --cluster bills-cluster \
   --region ap-southeast-2 \
   --nodegroup-name bills-mng \
   --scaling-config minSize=2,maxSize=2,desiredSize=2 \
   --instance-types t3.medium \
   --subnets subnet-xxxxxxxxxx subnet-xxxxxxxxxx subnet-xxxxxxxxxx subnet-xxxxxxxxxx \
   --node-role arn:aws:iam::xxxxxxxx:role/AmazonEKSNodeRole

Perform Depoloyment

Finally we can use Kubernetes and deploy our application. Remember to specify the image name. Sample manifest shown below

apiVersion: apps/v1
kind: Deployment
metadata:
  creationTimestamp: null
  labels:
    app: nginx-webapp
  name: nginx-webapp
spec:
  replicas: 5
  selector:
    matchLabels:
      app: nginx-webapp
  strategy: {}
  template:
    metadata:
      creationTimestamp: null
      labels:
        app: nginx-webapp
    spec:
      containers:
      - image: xxxxxxxxxx.dkr.ecr.ap-southeast-2.amazonaws.com/bill/angular-app:v1
        name: webapp
        imagePullPolicy: Always
        resources: {}
        ports:
          - containerPort: 80
status: {}

---

apiVersion: v1
kind: Service
metadata:
  name: nginx-webapp
  labels:
    run: nginx-webapp
spec:
  ports:
  - port: 80
    protocol: TCP
  selector:
    app: nginx-webapp
  type: LoadBalancer

And to run the deployment we use

 kubectl create -f manifest.yaml

Now we can the pods running with

 kubectl get pods

Which shows

 NAME                            READY   STATUS    RESTARTS   AGE
 nginx-webapp-65f7f6bd98-6vss6   1/1     Running   0          7m13s
 nginx-webapp-65f7f6bd98-8tbp9   1/1     Running   0          7m13s
 nginx-webapp-65f7f6bd98-c2t2l   1/1     Running   0          7m13s
 nginx-webapp-65f7f6bd98-ph6nl   1/1     Running   0          7m13s
 nginx-webapp-65f7f6bd98-wgmgf   1/1     Running   0          7m12s

And the service with

 kubectl get svc

Which shows

 NAME           TYPE           CLUSTER-IP       EXTERNAL-IP                                                                   PORT(S)        AGE
 kubernetes     ClusterIP      10.100.0.1       <none>                                                                        443/TCP        49m
 nginx-webapp   LoadBalancer   10.100.124.152   xxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxxx.ap-southeast-2.elb.amazonaws.com   80:30493/TCP   9m12s

Get Node External IP

When you use resources external to the cluster you may need to find the external IP of the node. To do this

kubectl get nodes -o wide

 NAME                                                 STATUS   ROLES    AGE    VERSION               INTERNAL-IP       EXTERNAL-IP    OS-IMAGE         KERNEL-VERSION
 CONTAINER-RUNTIME
 ip-192-168-XXX-XXX.ap-southeast-2.compute.internal   Ready    <none>   114d   v1.22.6-eks-7d68063   192.168.XXX.XXX   <none>         Amazon Linux 2   5.4.190-107.353.amzn2.x86_64   docker://20.10.13
 ip-192-168-XX-XX.ap-southeast-2.compute.internal     Ready    <none>   114d   v1.22.6-eks-7d68063   192.168.XX.XX     XX.XXX.XXX.X   Amazon Linux 2   5.4.190-107.353.amzn2.x86_64   docker://20.10.13

Busy Box

To resolve issues with network you can start a busybox

kubectl run -i --rm --tty debug --image=busybox -- sh

Remove EKS Elastic Kubernetes Service

To delete the deployment

kubectl delete deployment nginx-webapp
kubectl delete svc nginx-webapp

To delete the node group

 eksctl delete nodegroup \
   --cluster bills-cluster \
   --region ap-southeast-2 \
   --name bills-mng

To delete the cluster

 aws eks delete-cluster --name my-cluster --region ap-southeast-2

Useful Commands

eksctl get clusters
eksctl get nodegroup --cluster=my-cluster

Certificate Management

This has not been tried at this time but is here as a backport.

I followed the instructions on https://github.com/aws-samples/end-to-end-encryption-on-amazon-eks

Get Cert Manager Tool

This provides a command line tool to manager certificates

curl -L -o kubectl-cert-manager.tar.gz https://github.com/cert-manager/cert-manager/releases/download/v1.0.4/kubectl-cert_manager-linux-amd64.tar.gz
tar xzf kubectl-cert-manager.tar.gz
sudo mv kubectl-cert_manager /usr/local/bin

We can do some basic management from the cli

kubectl get certificate

NAME                   READY   SECRET         AGE
test-app-certificate   True    test-app-tls   135d

kubectl cert-manager renew test-app-certificate

Create Issuer

You will need to create a role and some bits in Route 53

apiVersion: cert-manager.io/v1
kind: ClusterIssuer
metadata:
  name: letsencrypt-cluster-issuer
spec:
  acme:
    server: https://acme-v02.api.letsencrypt.org/directory
    email: iwiseman@bibble.co.nz
    privateKeySecretRef:
      name: letsencrypt-cluster-issuer-key
    solvers:
    - dns01:
        route53:
          region: ap-southeast-2
          hostedZoneID: Zxxxx
          role: arn:aws:iam::xxxx0:role/xxxxx
      selector:
        dnsZones:
          - "npe-test-app.example.co.nz"

Create Certificate

apiVersion: cert-manager.io/v1
kind: Certificate
metadata:
  name: test-app-certificate
  namespace: default
spec:
  dnsNames:
    - npe-test-app.example.co.nz
  secretName: test-app-tls
  issuerRef:
    name: letsencrypt-cluster-issuer
    kind: ClusterIssuer

Virtual Server

Once we have a certificate we can make are virtual server

apiVersion: k8s.nginx.org/v1
kind: VirtualServer
metadata:
  name: test-app-virtualserver
spec:
  host: npe-test-app.example.co.nz
  tls:
    secret: test-app-tls
    redirect:
      enable: true
  routes:
  - path: /
    route: test-app-virtualserverroute

Virtual Server Routes

Now we make the routes

apiVersion: k8s.nginx.org/v1
kind: VirtualServerRoute
metadata:
  name: test-app-virtualserverroute
spec:
  host: npe-test-app.example.co.nz
  upstreams:
  - name: test-app-web-route
    service: test-app-web-service
    port: 443
    tls:
      enable: true
  - name: test-app-api-route
    service: test-app-api-service
    port: 3016
    tls:
      enable: true
  - name: test-app-tasks-route
    service: test-app-tasks-service
    port: 3017
    tls:
      enable: true
  subroutes:
  - path: /api
    action:
      pass: test-app-api-route
  - path: /tasks
    action:
      pass: test-app-tasks-route
  - path: /
    action:
      pass: test-app-web-route

Web

We create a pod with the code and a service to provide access to the cluster

Web Pod

apiVersion: apps/v1
kind: Deployment
metadata:
  name: test-app-deploy
  labels:
    app: test-app
spec:
  replicas: 2
  selector:
    matchLabels:
      app: test-app
  template:
    metadata:
      labels:
        app: test-app
    spec:
      containers:
        - name: test-app-web-container
          image: xxxxxxxxxxxxxxxxxxxxx/test/test-app-web:0.0.99
          ports:
            - containerPort: 443
          volumeMounts:

            - name: test-app-web-vol-tls
              mountPath: /etc/nginx/ssl
              readOnly: true

            - name: test-app-web-vol-config
              mountPath: /etc/nginx/conf.d

            - name: test-app-web-vol-secure
              mountPath: "/usr/share/nginx/html/config.js"
              subPath: "config.js"
      volumes:

        - name: test-app-web-vol-tls
          secret:
            secretName: test-app-tls

        - name: test-app-web-vol-config
          configMap:
            name: test-app-web-configmap-nginx

        - name: test-app-web-vol-secure
          configMap:
            name: test-app-web-configmap-secure
            items:
            - key: "web.properties"
              path: "config.js"

Web Service

apiVersion: v1
kind: Service
metadata:
  name: test-app-web-service
  labels:
    app: test-app
spec:
  ports:
    - port: 443
      targetPort: 443
      protocol: TCP
      name: https
  selector:
    app: test-app
  type: NodePort

Config Maps

For Nginx and React we need to put the configs in Kubernetes

Nginx configuration

apiVersion: v1
kind: ConfigMap
metadata:
  name: test-app-web-configmap-nginx
data:
  app.conf: |-
    server {
      listen 443 ssl;
      server_name npe-test-app-example.co.nz;

      ssl_certificate /etc/nginx/ssl/tls.crt;
      ssl_certificate_key /etc/nginx/ssl/tls.key;

        root  /usr/share/nginx/html;

        include /etc/nginx/mime.types;

        location / {
          try_files $uri /index.html;
        }

    }

React configuration

React needs parameters when it starts we store these here

apiVersion: v1
kind: ConfigMap
metadata:
    name: test-app-web-configmap-secure
data:
    web.properties: |
        window.REACT_APP_TASKS_HOST = 'https://npe-test-app.example.co.nz'
        window.REACT_APP_TASKS_PORT = 443
        window.REACT_APP_TASKS_PREFIX = 'tasks'
        window.REACT_APP_TASKS_VERSION = 'v0.0.1'
...

Tasks

Task Pod

apiVersion: apps/v1
kind: Deployment
metadata:
  name: test-app-tasks-deploy
  labels:
    app: test-app-tasks
spec:
  replicas: 1
  selector:
    matchLabels:
      app: test-app
  template:
    metadata:
      labels:
        app: test-app
    spec:
      containers:
        - name: test-app-tasks-container
          image: xxxx-blah.example.co.nz/test/test-app-tasks:0.0.8
          ports:
            - containerPort: 3017
          env:
          - name: TEST_APP_TASKS_VERSION
            value: "v0.0.1"
          - name: TEST_APP_TASKS_PREFIX
            value: "tasks"
          - name: TEST_APP_TASKS_PORT
            value: "3017"

          - name: KEY_PEM
            value: "/etc/test-app-tasks/ssl/tls.key"
          - name: KEY_CERT
            value: "/etc/test-app-tasks/ssl/tls.crt"

          volumeMounts:

            - name: test-app-tasks-vol-tls
              mountPath: /etc/test-app-tasks/ssl
              readOnly: true

      volumes:
        - name: test-app-tasks-vol-tls
          secret:
            secretName: test-app-tls

Task Service

apiVersion: v1
kind: Service
metadata:
  name: test-app-tasks-service
  labels:
    app: test-app
spec:

  ports:
    - name: tasks
      port: 3017
      targetPort: 3017

  selector:
    app: test-app
  type: LoadBalancer

External Database

This is an example of how to have access to a Postgres Database. You can now reference postgres-host as the host in the application or backend. Note the database may need your cluster IP added to its security group

apiVersion: v1
kind: Service
metadata:
  labels:
    app: brat-app
  name: postgres-host
spec:
  externalName: my-db.ap-southeast-2.rds.amazonaws.com
  selector:
    app: brat-app
  type: ExternalName
  ports:
    - name: api
      port: 5432
      targetPort: 5432
status:
  loadBalancer: {}

Using AWS Secrets in Deployment

When we check in deployment scripts we do not want to share the passwords in the scripts. An approach to avoid this is to use the CSI driver within the scripts

helm repo add secrets-store-csi-driver https://kubernetes-sigs.github.io/secrets-store-csi-driver/charts
helm install csi-secrets-store secrets-store-csi-driver/secrets-store-csi-driver --set syncSecret.enabled=true --namespace kube-system

# We can check this is install with
helm list -n kube-system

# We need to install the provider
kubectl apply -f https://raw.githubusercontent.com/aws/secrets-store-csi-driver-provider-aws/main/deployment/aws-provider-installer.yaml

Timeouts in Service

This initially looks like ingress/nginx issue where the get requests fails with 499. I added the following to the nginx annotations

nginx.ingress.kubernetes.io/proxy-connect-timeout: '600'
nginx.ingress.kubernetes.io/proxy-send-timeout: '600'
nginx.ingress.kubernetes.io/proxy-read-timeout: '600'

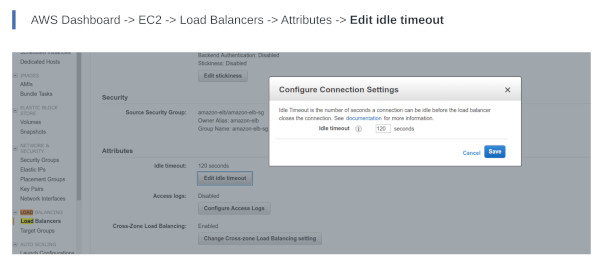

But this was actually the AWS Load balance which knocks it on the head.

AWS Angular and React Apps

Introduction

S3

Create Bucket

Enable Web Static Hosting

Grant Permissions

Upload Bucket

EKS Elastic Kubernetes Service

Prerequisites

Create Key Pair

Install AWS CLI

Install eksctl

Install kubectl

Install aws-iam-authenticator

AWS CLI and MFA

Get MFA Device Number (MFA_NUM)

Get Code from Device (CODE_FROM_MFA)

Get Values for environment variables

Set config and credential files

Create Test Angular Project

Clone Project

Build Project

Create Test React Project

Create React Project

Build Project

Dockerize Project

Define Dockfile

Build Docker Project

Store Docker Image

Login to ecr (Elastic Container Registry)

Create Repository

Tag and Push Image

Create Cluster

Create Cluster Role

Create Cluster

Add VPC CNI

Update Cluster config

Create Node

Create Managed Node IAM Role

Create Managed Node Group

Perform Depoloyment

Get Node External IP

Busy Box

Remove EKS Elastic Kubernetes Service

Useful Commands

Certificate Management

Get Cert Manager Tool

Create Issuer

Create Certificate

Virtual Server

Virtual Server Routes

Web

Web Pod

Web Service

Config Maps

Nginx configuration

React configuration

Tasks

Task Pod

Task Service

External Database

Using AWS Secrets in Deployment

Timeouts in Service

Navigation menu

Search
