Distributed Applications with GO

Elements of a Distributed System

Characteristic

Four aspects might be

• Service Discovery
• Load Balancing
• Distributed tracing and logging
• Service Monitoring

Type of Distributed System

• Hub and Spoke (Satélite approach)
  • Advantages Good for load balancing and logging
  • Disadvantages Bad to single point of failure. Hub is complex due to responsibilities
• Peer to Peer where each communicate directly
  • Advantages No Single point of failure. Highly decoupled
  • Disadvantages Service discovery and Load Balancing hard
• Message Queue System where services get work from the queue
  • Advantages Easy to scale, Persistence for disaster
  • Disadvantages Single Point of failure (message queue), hard to configure
• Hybrid system (none of the above)
  • This might will have advantages and disadvantage of both

Architectural Element

These are the aspect you may want to consider

• Languages
• Frameworks (Recommended Go-Kit and Go-Micro)
• Transports
• Protocol

Sample App

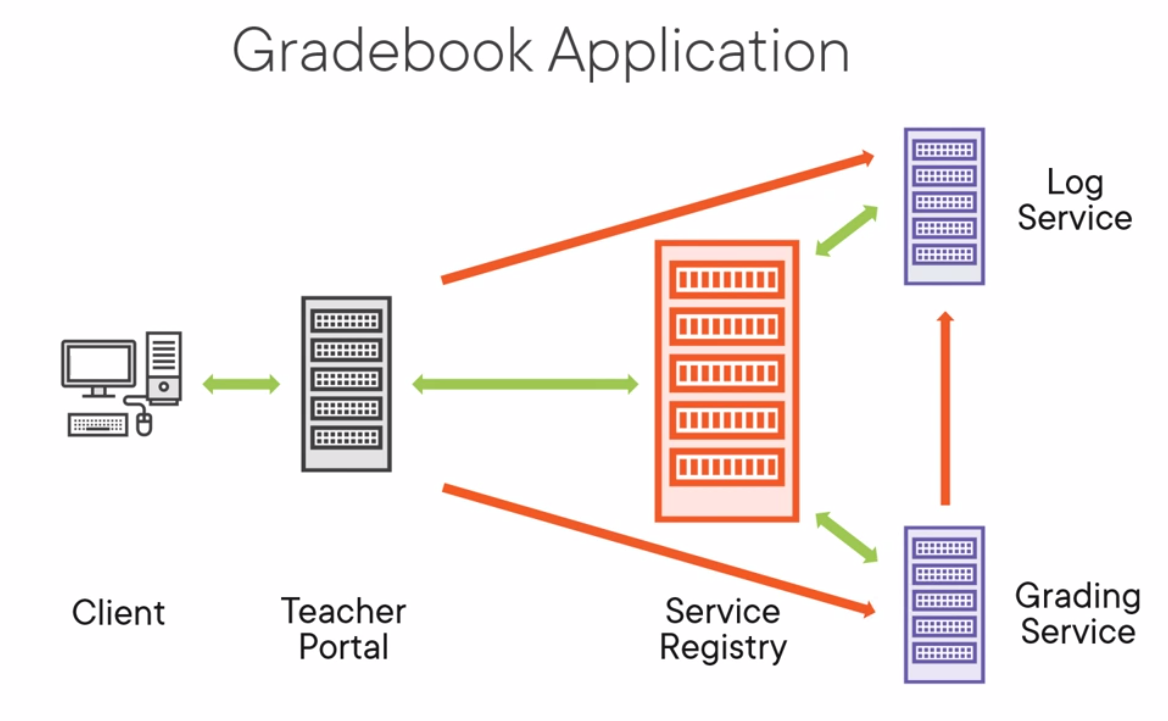

The sample app is a hybrid app using GO and this can be found at https://gitlab.com/bibble235/gradebookapp

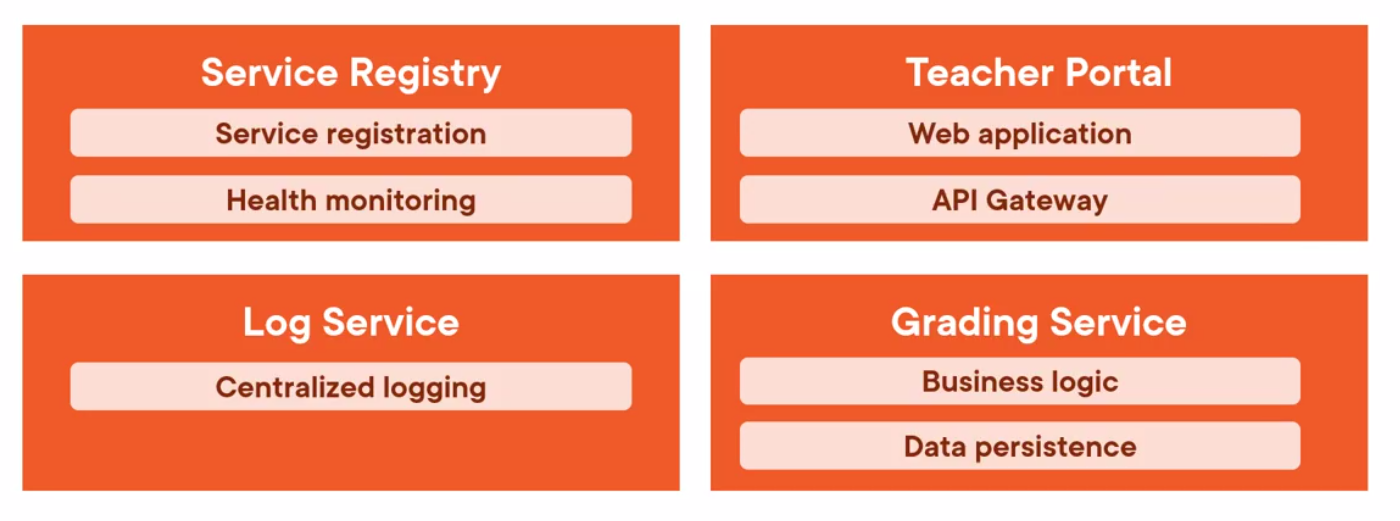

This is the components to build

Introduction

I do not usually go through large portions of code but I thought it might be useful to look at the sample code and comment on the topic and the relationship with GO as a language.

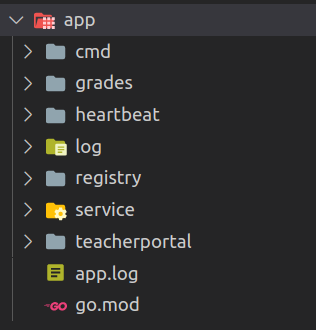

Project Structure

The project structure was basically a root folder with a cmd directory holding the main.go code for each binary. From there there is one folder for each component.

Log Service

Client

• SetClientLogger - Sets the attribute for the standard log package
• Write - Writes data to server

package log

import (
	"app/registry"
	"bytes"
	"fmt"
	stlog "log"
	"net/http"
)

func SetClientLogger(serviceURL string, clientService registry.ServiceName) {
	stlog.SetPrefix(fmt.Sprintf("[%v] - ", clientService))
	stlog.SetFlags(0)
	stlog.SetOutput(&clientLogger{url: serviceURL})
}

type clientLogger struct {
	url string
}

func (cl clientLogger) Write(data []byte) (int, error) {
	b := bytes.NewBuffer([]byte(data))
	res, err := http.Post(cl.url+"/log", "text/plain", b)
	if err != nil {
		return 0, err
	}
	if res.StatusCode != http.StatusOK {
		return 0, fmt.Errorf("Failed to send log message. Service responded with %v - %v", res.StatusCode, res.Status)
	}
	return len(data), nil
}

Server (Endpoints)

This creates an instance of a custom log type, a handler and a function to write to the file.

• Run - Creates a custom log file using the standard log package
• Write - Writes data to the stream
• RegisterHandlers - Registers the "/log", reads the data and writes the message

package log

import (
	"io/ioutil"
	stlog "log"
	"net/http"
	"os"
)

var log *stlog.Logger

type fileLog string

func (fl fileLog) Write(data []byte) (int, error) {
	f, err := os.OpenFile(string(fl), os.O_CREATE|os.O_WRONLY|os.O_APPEND, 0600)
	if err != nil {
		return 0, err
	}
	defer f.Close()
	return f.Write(data)
}

func Run(destination string) {
	log = stlog.New(fileLog(destination), "", stlog.LstdFlags)
}

func RegisterHandlers() {
	http.HandleFunc("/log", func(w http.ResponseWriter, r *http.Request) {
		msg, err := ioutil.ReadAll(r.Body)
		if err != nil || len(msg) == 0 {
			w.WriteHeader(http.StatusBadRequest)
			return
		}
		write(string(msg))
	})
}

func write(message string) {
	log.Printf("%v\n", message)
}

Grades Service

This service has three aspects

• Mock data
• Grade Business Logic
• EndPoints

Mock Data

There is nothing special about this data but handy to remind yourself how to do this in GO

package grades

func init() {
	students = []Student{
		Student{
			ID:        1,
			FirstName: "Averill",
			LastName:  "Simen",
			Grades: []Grade{
				Grade{
					Title: "Quiz 1",
					Type:  GradeQuiz,
					Score: 85,
				},
				Grade{
					Title: "Week 1 Homework",
					Type:  GradeHomework,
					Score: 94,
				},
				Grade{
					Title: "Quiz 2",
					Type:  GradeQuiz,
					Score: 88,
				},
			},
		},
		Student{
			ID:        2,
			FirstName: "Marge",
			LastName:  "Garrard",
			Grades: []Grade{
				Grade{
					Title: "Quiz 1",
					Type:  GradeQuiz,
					Score: 100,
				},
				Grade{
					Title: "Week 1 Homework",
					Type:  GradeHomework,
					Score: 100,
				},
				Grade{
					Title: "Quiz 2",
					Type:  GradeQuiz,
					Score: 88,
				},
			},
		},
		Student{
			ID:        3,
			FirstName: "Sydnie",
			LastName:  "Barber",
			Grades: []Grade{
				Grade{
					Title: "Quiz 1",
					Type:  GradeQuiz,
					Score: 77,
				},
				Grade{
					Title: "Week 1 Homework",
					Type:  GradeHomework,
					Score: 0,
				},
				Grade{
					Title: "Quiz 2",
					Type:  GradeQuiz,
					Score: 65,
				},
			},
		},
		Student{
			ID:        4,
			FirstName: "Louie",
			LastName:  "Easton",
			Grades: []Grade{
				Grade{
					Title: "Quiz 1",
					Type:  GradeQuiz,
					Score: 88,
				},
				Grade{
					Title: "Week 1 Homework",
					Type:  GradeHomework,
					Score: 93,
				},
				Grade{
					Title: "Quiz 2",
					Type:  GradeQuiz,
					Score: 84,
				},
			},
		},
		Student{
			ID:        5,
			FirstName: "Kylee",
			LastName:  "Attwood",
			Grades: []Grade{
				Grade{
					Title: "Quiz 1",
					Type:  GradeQuiz,
					Score: 95,
				},
				Grade{
					Title: "Week 1 Homework",
					Type:  GradeHomework,
					Score: 100,
				},
				Grade{
					Title: "Quiz 2",
					Type:  GradeQuiz,
					Score: 97,
				},
			},
		},
	}
}

Grade Business Logic

This is just business logic and useful for examples in GO.

package grades

import (
	"fmt"
	"sync"
)

type Student struct {
	ID        int
	FirstName string
	LastName  string
	Grades    []Grade
}

func (s Student) Average() float32 {
	var result float32
	for _, grade := range s.Grades {
		result += grade.Score
	}
	return result / float32(len(s.Grades))
}

type Students []Student

var (
	students      Students
	studentsMutex sync.Mutex
)

func (s Students) GetByID(id int) (*Student, error) {
	for i := range s {
		if s[i].ID == id {
			return &s[i], nil
		}
	}

	return nil, fmt.Errorf("Student with ID '%v' not found", id)
}

type GradeType string

const (
	GradeTest     = GradeType("Test")
	GradeHomework = GradeType("Homework")
	GradeQuiz     = GradeType("Quiz")
)

type Grade struct {
	Title string
	Type  GradeType
	Score float32
}

Server (EndPoints)

This has some interest parts

• toJSON which takes and interface and encodes whatever is provider.
• Uses split of the r.URL.Path to determine which was called
• Uses mutex to ensure thread safety

package grades

import (
	"bytes"
	"encoding/json"
	"fmt"
	"log"
	"net/http"
	"strconv"
	"strings"
)

func RegisterHandlers() {
	handler := new(studentsHandler)
	http.Handle("/students", handler)
	http.Handle("/students/", handler)
}

type studentsHandler struct{}

func (sh studentsHandler) ServeHTTP(w http.ResponseWriter, r *http.Request) {
	pathSegments := strings.Split(r.URL.Path, "/")
	switch len(pathSegments) {
	case 2: // /students
		sh.getAll(w, r)
	case 3: // /students/{:id}
		id, err := strconv.Atoi(pathSegments[2])
		if err != nil {
			w.WriteHeader(http.StatusNotFound)
			return
		}
		sh.getOne(w, r, id)
	case 4: // /students/{:id}/grades
		id, err := strconv.Atoi(pathSegments[2])
		if err != nil {
			w.WriteHeader(http.StatusNotFound)
			return
		}
		if strings.ToLower(pathSegments[3]) != "grades" {
			w.WriteHeader(http.StatusNotFound)
			return
		}
		sh.addGrade(w, r, id)

	default:
		w.WriteHeader(http.StatusNotFound)
	}
}

func (sh studentsHandler) getAll(w http.ResponseWriter, r *http.Request) {
	studentsMutex.Lock()
	defer studentsMutex.Unlock()

	data, err := sh.toJSON(students)
	if err != nil {
		w.WriteHeader(http.StatusInternalServerError)
		log.Println(err)
		return
	}
	w.Header().Add("content-type", "application/json")
	w.Write(data)
}

func (sh studentsHandler) getOne(w http.ResponseWriter, r *http.Request, id int) {
	studentsMutex.Lock()
	defer studentsMutex.Unlock()

	student, err := students.GetByID(id)
	if err != nil {
		if err != nil {
			w.WriteHeader(http.StatusNotFound)
			log.Println(err)
			return
		}
	}

	data, err := sh.toJSON(student)
	if err != nil {
		w.WriteHeader(http.StatusInternalServerError)
		log.Println(fmt.Errorf("Failed to serialize students: %q", err))
		return
	}
	w.Header().Add("content-type", "application/json")
	w.Write(data)
}

func (studentsHandler) toJSON(obj interface{}) ([]byte, error) {
	var b bytes.Buffer
	enc := json.NewEncoder(&b)
	err := enc.Encode(obj)
	if err != nil {
		return nil, fmt.Errorf("Failed to serialize students: %q", err)
	}
	return b.Bytes(), nil
}

func (sh studentsHandler) addGrade(w http.ResponseWriter, r *http.Request, id int) {
	studentsMutex.Lock()
	defer studentsMutex.Unlock()

	student, err := students.GetByID(id)
	if err != nil {
		if err != nil {
			w.WriteHeader(http.StatusInternalServerError)
			log.Println(err)
			return
		}
	}

	var g Grade
	dec := json.NewDecoder(r.Body)
	err = dec.Decode(&g)
	if err != nil {
		w.WriteHeader(http.StatusBadRequest)
		log.Println(err)
		return
	}
	student.Grades = append(student.Grades, g)

	w.WriteHeader(http.StatusCreated)
	data, err := sh.toJSON(g)
	if err != nil {
		log.Println(err)
	}
	w.Header().Add("content-type", "application/json")
	w.Write(data)
}

Registry

Registration

This holds the types used for this package, the patch is a struct to hold the changes in an add or delete, the Registration holds data for the registration.

package registry

type Registration struct {
	ServiceName      ServiceName
	ServiceURL       string
	HeartbeatURL     string
	ServiceUpdateURL string
	RequiredServices []ServiceName
}

type ServiceName string

const (
	LogService     = ServiceName("LogService")
	TeacherPortal  = ServiceName("TeacherPortal")
	GradingService = ServiceName("GradingService")
)

type patchEntry struct {
	Name ServiceName
	URL  string
}

type patch struct {
	Added   []patchEntry
	Removed []patchEntry
}

Server

This is responsible for

• Adding and Removing registrations
• Notifying services or either addition or removal of registration
• Provides the heartbeat method

The heartbeat function demonstrates the use of a WaitGroup where registrations are iterated over and they are checked. Like the mutex it is essential to have the defer to ensure it is released in the event of an error.

package registry

import (
	"bytes"
	"encoding/json"
	"fmt"
	"io/ioutil"
	"log"
	"net/http"
	"sync"
	"time"
)

const ServerPort = ":3000"
const ServicesURL = "http://localhost" + ServerPort + "/services"

type registry struct {
	registrations []Registration
	mutex         *sync.RWMutex
}

func (r *registry) add(reg Registration) error {
	r.mutex.Lock()
	r.registrations = append(r.registrations, reg)
	r.mutex.Unlock()
	err := r.sendRequiredServices(reg)
	r.notify(patch{
		Added: []patchEntry{
			patchEntry{Name: reg.ServiceName, URL: reg.ServiceURL},
		},
	})
	return err
}

func (r *registry) remove(url string) error {
	for i := range r.registrations {
		if r.registrations[i].ServiceURL == url {
			r.notify(patch{
				Removed: []patchEntry{
					patchEntry{Name: r.registrations[i].ServiceName, URL: r.registrations[i].ServiceURL},
				},
			})
			r.mutex.Lock()
			r.registrations = append(r.registrations[:i], r.registrations[i+1:]...)
			r.mutex.Unlock()
			return nil
		}
	}
	return fmt.Errorf("Service at URL %v not found", url)
}

func (r registry) notify(p patch) {
	r.mutex.RLock()
	defer r.mutex.RUnlock()
	for _, reg := range r.registrations {
		go func(reg Registration) {
			for _, reqService := range reg.RequiredServices {
				p := patch{Added: []patchEntry{}, Removed: []patchEntry{}}
				sendUpdate := false
				for _, added := range p.Added {
					if added.Name == reqService {
						p.Added = append(p.Added, added)
						sendUpdate = true
					}
				}
				for _, removed := range p.Removed {
					if removed.Name == reqService {
						p.Removed = append(p.Removed, removed)
						sendUpdate = true
					}
				}
				if sendUpdate {
					err := r.sendPatch(p, reg.ServiceUpdateURL)
					if err != nil {
						log.Println(err)
						return
					}
				}
			}
		}(reg)
	}
}

func (r registry) sendPatch(p patch, url string) error {
	d, err := json.Marshal(p)
	if err != nil {
		return err
	}
	_, err = http.Post(url, "application/json", bytes.NewBuffer(d))
	if err != nil {
		return err
	}
	return nil
}

func (r registry) sendRequiredServices(reg Registration) error {
	r.mutex.RLock()
	defer r.mutex.RUnlock()

	var p patch
	for _, serviceReg := range r.registrations {
		for _, reqService := range reg.RequiredServices {
			if serviceReg.ServiceName == reqService {
				p.Added = append(p.Added, patchEntry{
					Name: serviceReg.ServiceName,
					URL:  serviceReg.ServiceURL,
				})
			}
		}
	}
	err := r.sendPatch(p, reg.ServiceUpdateURL)
	if err != nil {
		return err
	}
	return nil
}

func (r *registry) heartbeat(freq time.Duration) {
	for {
		var wg sync.WaitGroup
		for _, reg := range r.registrations {
			wg.Add(1)
			go func(reg Registration) {
				defer wg.Done()
				r.checkService(reg)
			}(reg)
		}
		wg.Wait()
		time.Sleep(freq)
	}
}

func (r *registry) checkService(reg Registration) {

	success := true

	for attempts := 0; attempts < 3; attempts++ {
		res, err := http.Get(reg.HeartbeatURL)
		if err != nil {
			log.Println(err)
		} else if res.StatusCode == http.StatusOK {
			log.Printf("Heartbeat check passed for %v", reg.ServiceName)
			if !success {
				r.add(reg)
			}
			break
		}
		log.Printf("Heartbeat check failed for %v", reg.ServiceName)
		if success {
			success = false
			r.remove(reg.ServiceURL)
		}
		time.Sleep(3 * time.Second) // wait to try again
	}

}


var reg = registry{registrations: make([]Registration, 0),
	mutex: new(sync.RWMutex),
}
var once sync.Once

func SetupRegistryService() {
	once.Do(func() {
		go reg.heartbeat(3 * time.Second)
	})
}

type RegistryService struct{}

func (s RegistryService) ServeHTTP(w http.ResponseWriter, req *http.Request) {
	log.Println("Request received")
	switch req.Method {
	case http.MethodPost:
		dec := json.NewDecoder(req.Body)
		var r Registration
		err := dec.Decode(&r)
		if err != nil {
			log.Println(err)
			w.WriteHeader(http.StatusBadRequest)
			return
		}
		log.Printf("Adding service: %v with URL: %v", r.ServiceName, r.ServiceURL)
		err = reg.add(r)
		if err != nil {
			log.Println(err)
			w.WriteHeader(http.StatusBadRequest)
			return

		}
	case http.MethodDelete:
		payload, err := ioutil.ReadAll(req.Body)
		if err != nil {
			log.Println(err)
			w.WriteHeader(http.StatusInternalServerError)
			return
		}
		url := string(payload)
		log.Printf("Removing service at URL: %v", url)
		err = reg.remove(url)
		if err != nil {
			log.Println(err)
			w.WriteHeader(http.StatusInternalServerError)
			return
		}
	default:
		w.WriteHeader(http.StatusMethodNotAllowed)
	}
}

Client

This tracks the providers of services.

• Update. Reads the patch which contains the changes and updates the provider list
• GetProvider gets the service by name
• RegisterService Adds a function handler for hearbeat URL Adds a http handler for Service

package registry

import (
	"bytes"
	"encoding/json"
	"fmt"
	"log"
	"math/rand"
	"net/http"
	"net/url"
	"sync"
)

// Providers contains the URLs for providers that the service
// requires.
type providers struct {
	services map[ServiceName][]string
	mutex    *sync.RWMutex
}

var prov = providers{
	services: make(map[ServiceName][]string),
	mutex:    new(sync.RWMutex),
}

func (p *providers) Update(pat patch) {
	p.mutex.Lock()
	defer p.mutex.Unlock()
	for _, patchEntry := range pat.Added {
		if _, ok := p.services[patchEntry.Name]; !ok {
			p.services[patchEntry.Name] = make([]string, 0)
		}
		p.services[patchEntry.Name] = append(p.services[patchEntry.Name], patchEntry.URL)
	}
	for _, patchEntry := range pat.Removed {
		if providerURLs, ok := p.services[patchEntry.Name]; ok {
			for i := range providerURLs {
				if providerURLs[i] == patchEntry.URL {
					p.services[patchEntry.Name] = append(providerURLs[:i], providerURLs[i+1:]...)
				}
			}
		}
	}
}

func (p providers) get(name ServiceName) (string, error) {
	providers, ok := p.services[name]
	if !ok {
		return "", fmt.Errorf("No providers available for service %v", name)
	}
	idx := int(rand.Float32() * float32(len(providers)))
	return providers[idx], nil
}

func GetProvider(name ServiceName) (string, error) {
	return prov.get(name)
}

func RegisterService(r Registration) error {

	heartbeatURL, err := url.Parse(r.HeartbeatURL)
	if err != nil {
		return err
	}
	http.HandleFunc(heartbeatURL.Path, func(w http.ResponseWriter, r *http.Request) {
		w.WriteHeader(http.StatusOK)
	})
	serviceUpdateURL, err := url.Parse(r.ServiceUpdateURL)
	if err != nil {
		return err
	}
	http.Handle(serviceUpdateURL.Path, &serviceUpdateHandler{})

	buf := new(bytes.Buffer)
	enc := json.NewEncoder(buf)
	err = enc.Encode(r)
	if err != nil {
		return err
	}
	res, err := http.Post(ServicesURL, "application/json", buf)
	if err != nil {
		return err
	}
	if res.StatusCode != http.StatusOK {
		return fmt.Errorf("Failed to register service. Registry service responded with code %v", res.StatusCode)
	}
	return nil
}

func ShutdownService(serviceURL string) error {
	req, err := http.NewRequest(http.MethodDelete,
		ServicesURL,
		bytes.NewBuffer([]byte(serviceURL)))
	req.Header.Add("content-type", "text/plain")
	if err != nil {
		return err
	}
	res, err := http.DefaultClient.Do(req)
	if res.StatusCode != http.StatusOK {
		return fmt.Errorf("Failed to deregister service. Registry service responded with code %v", res.StatusCode)
	}
	return err
}

type serviceUpdateHandler struct{}

func (suh serviceUpdateHandler) ServeHTTP(w http.ResponseWriter, r *http.Request) {
	if r.Method != http.MethodPost {
		w.WriteHeader(http.StatusMethodNotAllowed)
		return
	}
	dec := json.NewDecoder(r.Body)
	var p patch
	err := dec.Decode(&p)
	if err != nil {
		log.Println(err)
		w.WriteHeader(http.StatusBadRequest)
		return
	}
	prov.Update(p)
}

Teacher Portal

This uses something called GO-Templates.

GO Templates

This seems to be a bit like pug, asp or other template but to GO.

Templates

This file defines the files to load.

package teacherportal

import (
	"html/template"
)

var rootTemplate *template.Template

func ImportTemplates() error {
	var err error
	rootTemplate, err = template.ParseFiles(
		"teacherportal/students.gohtml",
		"teacherportal/student.gohtml",
		"teacherportal/grades.gohtml")

	if err != nil {
		return err
	}

	return nil
}

Student

<!DOCTYPE html>
<html lang="en">
<head>
    <meta charset="UTF-8">
    <meta name="viewport" content="width=device-width, initial-scale=1.0">
    <title>Student</title>
</head>
<body>
    <h1>
        <a href="/students">Grade Book</a>
        - {{.LastName}}, {{.FirstName}}</h1>

    {{if gt (len .Grades) 0}}
        <table>
            <tr>
                <th>Title</th>
                <th>Type</th>
                <th>Score</th>
            </tr>
            {{range .Grades}}
                <tr>
                    <td>{{.Title}}</td>
                    <td>{{.Type}}</td>
                    <td>{{.Score}}</td>
                </tr>
            {{end}}
        </table>
    {{else}}
        <em>No grades available</em>
    {{end}}

    <fieldset>
        <legend>Add a Grade</legend>
        <form action="/students/{{.ID}}/grades" method="POST">
            <table>
                <tr>
                    <td>Title</td>
                    <td>
                        <input type="text" name="Title">
                    </td>
                </tr>
                <tr>
                    <td>Type</td>
                    <td>
                        <select name="Type" id="Type">
                            <option value="Test">Test</option>
                            <option value="Quiz">Quiz</option>
                            <option value="Homework">Homework</option>
                        </select>
                    </td>
                </tr>
                <tr>
                    <td>Score</td>
                    <td>
                        <input type="number" min="0" max="100" step="1" name="Score">
                    </td>
                </tr>
            </table>
            <button type="submit">Submit</button>
        </form>
    </fieldset>
</body>
</html>

Students

<!DOCTYPE html>
<html lang="en">
<head>
    <meta charset="UTF-8">
    <meta name="viewport" content="width=device-width, initial-scale=1.0">
    <title>Students</title>
</head>
<body>
    <h1>Grade Book</h1>
    {{if len .}}
        <table>
            <tr>
                <th>Name</th>
                <th>Average [%]</th>
            </tr>
            {{range .}}
                <tr>
                    <td>
                        <a href="/students/{{.ID}}">{{.LastName}}, {{.FirstName}}</a>
                    </td>
                    <td>
                        {{printf "%.1f%%" .Average}}
                    </td>
                </tr>
            {{end}}
        </table>
    {{else}}
        <em>No students found</em>
    {{end}}

</body>
</html>

Grades

<!DOCTYPE html>
<html lang="en">
<head>
    <meta charset="UTF-8">
    <meta name="viewport" content="width=device-width, initial-scale=1.0">
    <title>Grades</title>
</head>
<body>

</body>
</html>

Handlers

This is like EJS templates. Basically the data is retrieved and render is called to show the server-side templates.

package teacherportal

import (
	"app/grades"
	"app/registry"
	"bytes"
	"encoding/json"
	"fmt"
	"log"
	"net/http"
	"strconv"
	"strings"
)

func RegisterHandlers() {
	http.Handle("/", http.RedirectHandler("/students", http.StatusPermanentRedirect))

	h := new(studentsHandler)
	http.Handle("/students", h)
	http.Handle("/students/", h)
}

type studentsHandler struct{}

func (sh studentsHandler) ServeHTTP(w http.ResponseWriter, r *http.Request) {
	pathSegments := strings.Split(r.URL.Path, "/")
	switch len(pathSegments) {
	case 2: // /students
		sh.renderStudents(w, r)
	case 3: // /students/{:id}
		id, err := strconv.Atoi(pathSegments[2])
		if err != nil {
			w.WriteHeader(http.StatusNotFound)
			return
		}
		sh.renderStudent(w, r, id)
	case 4: // /students/{:id}/grades
		id, err := strconv.Atoi(pathSegments[2])
		if err != nil {
			w.WriteHeader(http.StatusNotFound)
			return
		}
		if strings.ToLower(pathSegments[3]) != "grades" {
			w.WriteHeader(http.StatusNotFound)
			return
		}
		sh.renderGrades(w, r, id)

	default:
		w.WriteHeader(http.StatusNotFound)
	}
}

func (studentsHandler) renderStudents(w http.ResponseWriter, r *http.Request) {
	var err error
	defer func() {
		if err != nil {
			w.WriteHeader(http.StatusInternalServerError)
			log.Println("Error retrieving students: ", err)
		}
	}()

	serviceURL, err := registry.GetProvider(registry.GradingService)
	if err != nil {
		return
	}

	res, err := http.Get(serviceURL + "/students")
	if err != nil {
		return
	}

	var s grades.Students
	err = json.NewDecoder(res.Body).Decode(&s)
	if err != nil {
		return
	}

	rootTemplate.Lookup("students.gohtml").Execute(w, s)
}

func (studentsHandler) renderStudent(w http.ResponseWriter, r *http.Request, id int) {

	var err error
	defer func() {
		if err != nil {
			w.WriteHeader(http.StatusInternalServerError)
			log.Println("Error retrieving students: ", err)
			return
		}
	}()

	serviceURL, err := registry.GetProvider(registry.GradingService)
	if err != nil {
		return
	}

	res, err := http.Get(fmt.Sprintf("%v/students/%v", serviceURL, id))
	if err != nil {
		return
	}

	var s grades.Student
	err = json.NewDecoder(res.Body).Decode(&s)
	if err != nil {
		return
	}

	rootTemplate.Lookup("student.gohtml").Execute(w, s)
}

func (studentsHandler) renderGrades(w http.ResponseWriter, r *http.Request, id int) {

	if r.Method != http.MethodPost {
		w.WriteHeader(http.StatusMethodNotAllowed)
		return
	}
	defer func() {
		w.Header().Add("location", fmt.Sprintf("/students/%v", id))
		w.WriteHeader(http.StatusTemporaryRedirect)
	}()
	title := r.FormValue("Title")
	gradeType := r.FormValue("Type")
	score, err := strconv.ParseFloat(r.FormValue("Score"), 32)
	if err != nil {
		log.Println("Failed to parse score: ", err)
		return
	}
	g := grades.Grade{
		Title: title,
		Type:  grades.GradeType(gradeType),
		Score: float32(score),
	}
	data, err := json.Marshal(g)
	if err != nil {
		log.Println("Failed to convert grade to JSON: ", g, err)
	}

	serviceURL, err := registry.GetProvider(registry.GradingService)
	if err != nil {
		log.Println("Failed to retrieve instance of Grading Service", err)
		return
	}
	res, err := http.Post(fmt.Sprintf("%v/students/%v/grades", serviceURL, id), "application/json", bytes.NewBuffer(data))
	if err != nil {
		log.Println("Failed to save grade to Grading Service", err)
		return
	}
	if res.StatusCode != http.StatusCreated {
		log.Println("Failed to save grade to Grading Service. Status: ", res.StatusCode)
		return
	}
}

Service

This package is the API responsible for starting the services.

package service

import (
	"app/registry"
	"context"
	"fmt"
	stlog "log"
	"net/http"
)

func Start(ctx context.Context, host, port string, reg registry.Registration, registerHandlersFunc func()) (context.Context, error) {
	registerHandlersFunc()
	ctx = startService(ctx, reg.ServiceName, host, port)

	err := registry.RegisterService(reg)
	if err != nil {
		return ctx, err
	}

	return ctx, nil
}

func startService(ctx context.Context, serviceName registry.ServiceName, host, port string) context.Context {
	ctx, cancel := context.WithCancel(ctx)

	var srv http.Server
	srv.Addr = ":" + port

	go func() {
		stlog.Println(srv.ListenAndServe())
		cancel()
	}()

	go func() {
		fmt.Printf("%v started. Press any key to stop.\n", serviceName)
		var s string
		fmt.Scanln(&s)
		err := registry.ShutdownService(fmt.Sprintf("http://%v:%v", host, port))
		if err != nil {
			stlog.Println(err)
		}
		srv.Shutdown(ctx)
		cancel()
	}()

	return ctx
}

cmds (Where GO puts main)

Here for completeness are the four mains for the four services.

Log Service

package main

import (
	"app/log"
	"app/registry"
	"app/service"
	"context"
	"fmt"
	stlog "log"
)

func main() {
	log.Run("./app.log")

	host, port := "localhost", "4000"
	serviceAddress := fmt.Sprintf("http://%v:%v", host, port)

	var r registry.Registration
	r.ServiceName = registry.LogService
	r.ServiceURL = serviceAddress
	r.HeartbeatURL = r.ServiceURL + "/heartbeat"
	r.RequiredServices = make([]registry.ServiceName, 0)
	r.ServiceUpdateURL = r.ServiceURL + "/services"

	ctx, err := service.Start(context.Background(),
		host,
		port,
		r,
		log.RegisterHandlers)
	if err != nil {
		stlog.Fatal(err)
	}

	<-ctx.Done()
	fmt.Println("Shutting down log service")

}

Registry Service

Just creates and instance of the service. I waits for the context to end and report.

package main

import (
	"app/grades"
	"app/log"
	"app/registry"
	"app/service"
	"context"
	"fmt"
	stlog "log"
)

func main() {
	host, port := "localhost", "6000"
	serviceAddress := fmt.Sprintf("http://%v:%v", host, port)

	var r registry.Registration
	r.ServiceName = registry.GradingService
	r.ServiceURL = serviceAddress
	r.HeartbeatURL = r.ServiceURL + "/heartbeat"
	r.RequiredServices = make([]registry.ServiceName, 0)
	r.ServiceUpdateURL = r.ServiceURL + "/services"

	ctx, err := service.Start(context.Background(),
		host,
		port,
		r,
		grades.RegisterHandlers)
	if err != nil {
		stlog.Fatal(err)
	}
	if logProvider, err := registry.GetProvider(registry.LogService); err == nil {
		log.SetClientLogger(logProvider, r.ServiceName)
	}

	<-ctx.Done()
	fmt.Println("Shutting down grading service")
}

Teach Portal Service

package main

import (
	"app/log"
	"app/registry"
	"app/service"
	"app/teacherportal"
	"context"
	"fmt"
	stlog "log"
)

func main() {
	err := teacherportal.ImportTemplates()
	if err != nil {
		stlog.Fatal(err)
	}

	host, port := "localhost", "5000"
	serviceAddress := fmt.Sprintf("http://%v:%v", host, port)

	var r registry.Registration
	r.ServiceName = registry.TeacherPortal
	r.ServiceURL = serviceAddress
	r.HeartbeatURL = r.ServiceURL + "/heartbeat"
	r.RequiredServices = []registry.ServiceName{
		registry.LogService,
		registry.GradingService,
	}
	r.ServiceUpdateURL = r.ServiceURL + "/services"

	ctx, err := service.Start(context.Background(),
		host,
		port,
		r,
		teacherportal.RegisterHandlers)
	if err != nil {
		stlog.Fatal(err)
	}
	if logProvider, err := registry.GetProvider(registry.LogService); err == nil {
		log.SetClientLogger(logProvider, r.ServiceName)
	}

	<-ctx.Done()
	fmt.Println("Shutting down teacher portal")

}

Grading Service

package main

import (
	"app/grades"
	"app/log"
	"app/registry"
	"app/service"
	"context"
	"fmt"
	stlog "log"
)

func main() {
	host, port := "localhost", "6000"
	serviceAddress := fmt.Sprintf("http://%v:%v", host, port)

	var r registry.Registration
	r.ServiceName = registry.GradingService
	r.ServiceURL = serviceAddress
	r.HeartbeatURL = r.ServiceURL + "/heartbeat"
	r.RequiredServices = make([]registry.ServiceName, 0)
	r.ServiceUpdateURL = r.ServiceURL + "/services"

	ctx, err := service.Start(context.Background(),
		host,
		port,
		r,
		grades.RegisterHandlers)
	if err != nil {
		stlog.Fatal(err)
	}
	if logProvider, err := registry.GetProvider(registry.LogService); err == nil {
		log.SetClientLogger(logProvider, r.ServiceName)
	}

	<-ctx.Done()
	fmt.Println("Shutting down grading service")
}

Service Registration

• Create Web Service
• Create Register Service
• Register Web Service
• Deregister Web Service

Service Discovery

• Create Grading Service
• Request Required Service On Startup
• Notify when Service Starts
• Notify when Service Shutdown
