OAuth 2.0

Introduction

History

Previously we used

• XML
• SOAP
• SAML or WS-*

Now we Use

• JSON
• HTTP APIs
• OAuth and OpenID Connect

Credential Sharing

Previously we used to use credential Sharing. E.g. Problems with this are

• We can impersonate the use
• Issues around revocation
• Exposed user credentials

Cookies

Next solution was cookies but CSRF and XSRF attacks were common.

API Key

Next API Key, this works well accept for where the app has no backend. E.g. Single Page App.

• API Keys have no standard
• Expiration management

OAuth 2.0

Features include

• Authorization framework
• Built for HTTP APIs
• Scoped access (User defined what can be used)
• Delegation Protocol

Players include

• Protected Resource (Our API)
• Client (requesting application)
• Resource Owner (the user)
• Authorization Server

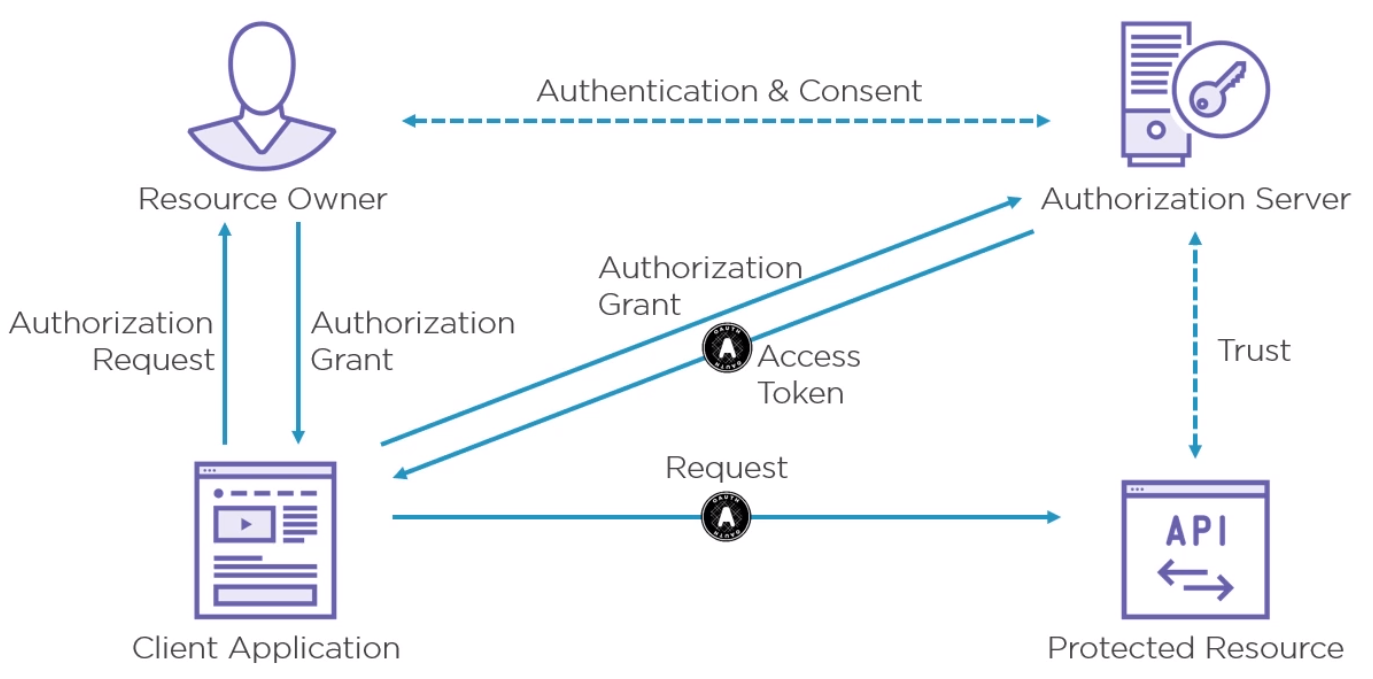

Here is the flow for OAuth 2.0
How the API trusts the access token is out of scope for OAuth but if is up to the Protected Resource to do this before sending the response.

Detail

Endpoints

The Protocol endpoint are either

• Authorization Handles all user interaction by the user agent
• Token - This endpoint is for machines only

Scope

A scope in OAuth is a permission to do something with a protected resource. E.g. access to API, Read/Write, Feature.

Grant Types

Types

There are five Grant Types

• Authorization Code Grant Type
• Implicit Grant Type
• Resource Owner Credentials Grant Type (Don't use)
• Client Credentials Grant Type
• Refresh Token Grant

See https://athiththan11.medium.com/oauth-2-grant-types-a-story-guide-582580a3c4c2 for more

Authorization Code Grant Type Flow

The Authorization Code Grant Type is the most commonly used grant type to authorize the Client to access protected data from a Resource Server.

Step 1 - Authorization Request

To make an Authorization request we send

• Response Type
• Client Id
• Redirect Uri
• state (optional)
• scope parameters (optional)

Step 2 - Authorization Response

This redirect to the Url in the request and returns

• code
• state (optionally)

Step 3 - POST Token Request

The parameters include

• Host (e.g. myserver.co.nz)
• Content Type (e.g. x-www-for-urlencoded)
• Authorization (e.g. Basic)

The POST body must include a body with

• grant_type=authorization_code
• code=authorization_code (from step 2)
• redirect_uri=https://client.example.cb

There are two forms of Basic Authentication

• RFC 7617 Base64(client_id + ":" + client_secret)
• RFC 67649 Base64(urlformencode(client_id) + ":" + urlformencode(client_secret))

Step 4 - Token Request Response

If successful we will get

• access_token
• token_type
• expiry (in seconds)
• scope (optional)

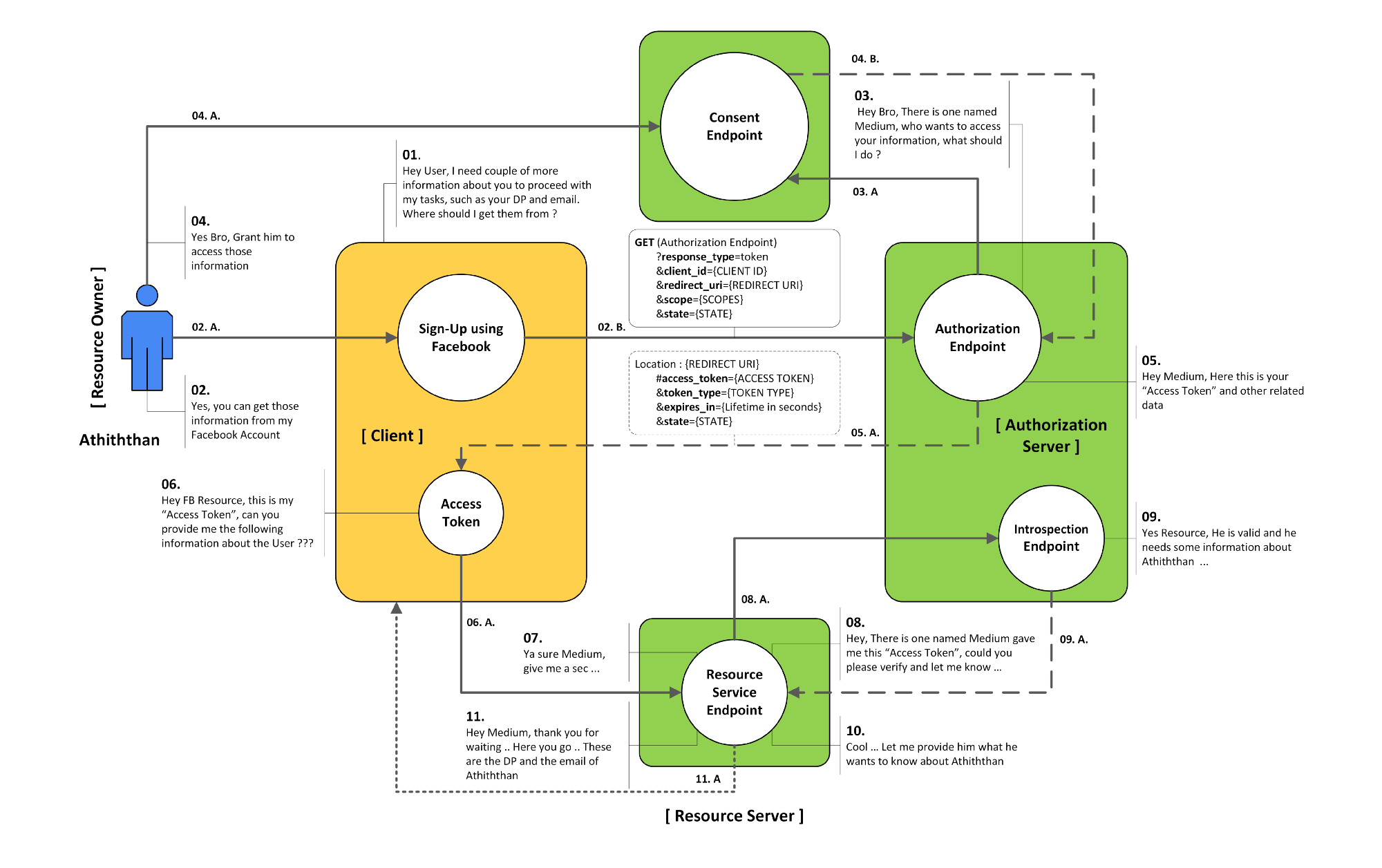

Implicit Grant Type Flow

The Implicit Grant Type is intended to be used by user-agent based clients (Example: SPA), which can’t keep a client secret because all of the application code and storage is easily accessible.

Step 1 Authorization Request

For the request we send

• response type
• client id
• redirect_uri
• state
• scope

The redirect is the main defense for abuse

Step 2 Authorization Response

In the response we receive in the Url fragment

• access token
• type type
• expiry (in seconds)
• state

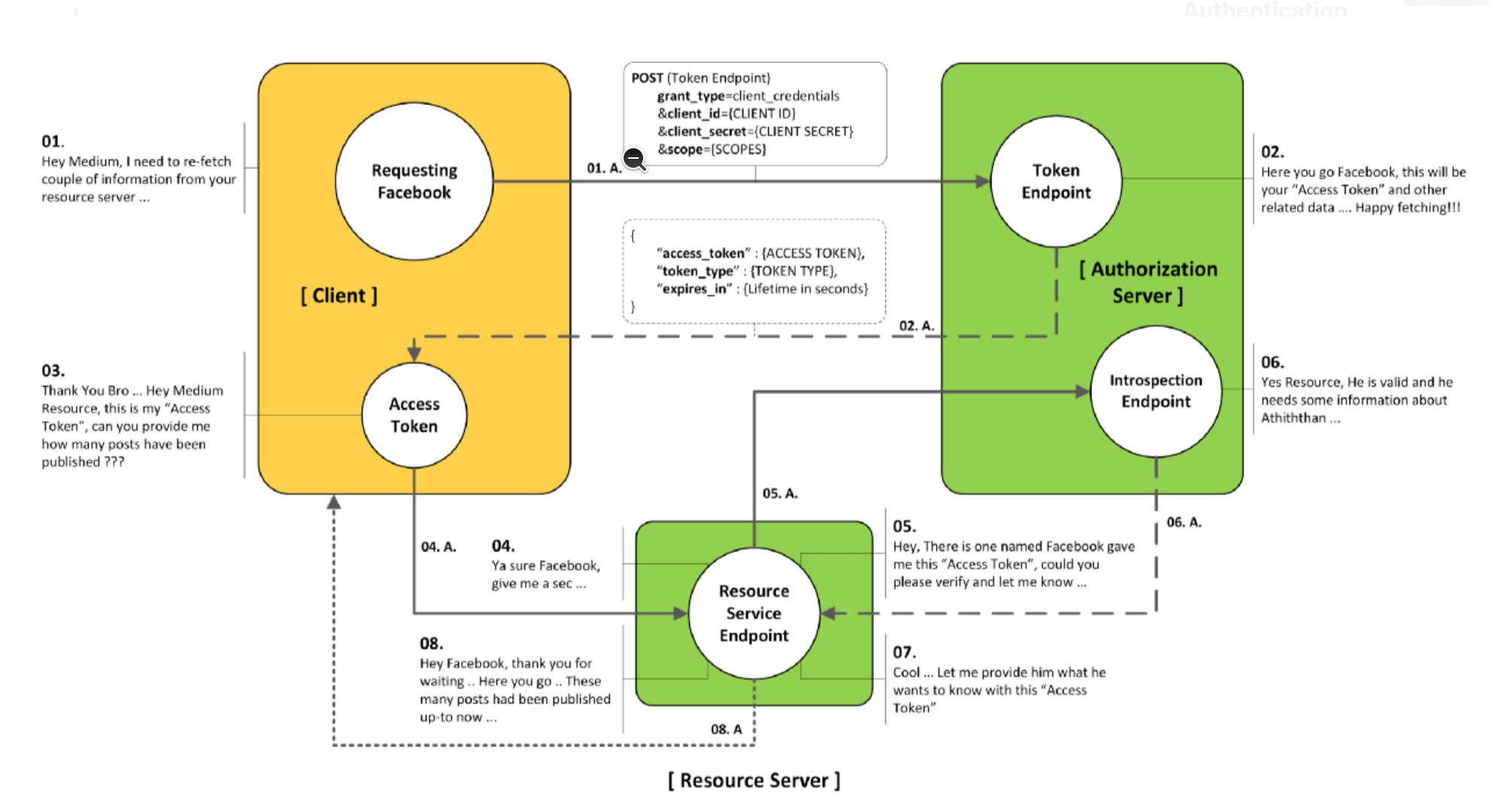

Client Credentials Grant Type

Introduction

The Client Credentials Grant Type uses the client_id and the client_secret credentials of a Client to authorize and access protected data from a Resource Server.

• designed for client applications who are the resource owner
• best for machine-to-machine communication
• requires client authentication

Step 1 Client requests an access token

To receive an access token, the client POSTs an API call to Edge with the values for client ID and client secret obtained from a registered developer app. In addition, the parameter grant_type=client_credentials must be passed as a query parameter. (However, you can configure the OAuthV2 policy to accept this parameter in the request header or body -- see OAuthV2 policy for details).

result = aBase64EncodeFunction(ns4fQc14Zg4hKFCNaSzArVuwszX95X:ZIjFyTsNgQNyxI) // Note the colon separating the two values.
The result of base64 encoding the above string is: bnM0ZlFjMTRaZzRoS0ZDTmFTekFyVnV3c3pYOTVYOlpJakZ5VHNOZ1FOeXhJOg==

$ curl -i -H 'Content-Type: application/x-www-form-urlencoded' -X POST 'https://docs-test.apigee.net/oauth/accesstoken' -d 'grant_type=client_credentials&client_id=ns4fQc14Zg4hKFCNaSzArVuwszX95X&client_secret=ZIjFyTsNgQNyxI'

Then, make the token request like this:

$ curl -i -H 'Content-Type: application/x-www-form-urlencoded' -X POST 'https://docs-test.apigee.net/oauth/accesstoken' -d 'grant_type=client_credentials' -H 'Authorization: Basic bnM0ZlFjMTRaZzRoS0ZDTmFTekFyVnV3c3pYOTVYOlpJakZ5VHNOZ1FOeXhJOg=='

Refresh Token Grant Type

Introduction

The Refresh Token Grant Flow is specially used to gain new access_token from the Authorization Server by providing the refresh_token to the Token Endpoint.

• Can be swapped for new tokens
• Allow for long-lived access
• Highly confidential
• User should be made aware that refresh tokens are being requested

Step 1 Authorization Request

This is similar to authorization code

• response type
• client id
• redirect uri
• state (optional)
• scope (optional)

A common scope used is offline_access which indicates the usage of this token.

Step 2 Authorization Response (token response)

The response will contain

• access token
• token type
• expiry (in seconds)
• refresh token
• scope

Step 3 Refresh Token Request (POST)

In this we send to the token endpoint a request with

• Host
• Authorization
• Content type

And parameters

• grant_type=refresh_token
• refresh_token
• scope

Step 4 Refresh Token Response

If successful we receive

• Access Token
• Token type
• Expiry (in seconds)
• Refresh Token
• Scope

Response Modes

The are three response modes

• Query String
• Hash Fragment
• Form Post (Recommended)

Errors

If there are errors the server may return

• error
• error description
• error url
• state

If this is the token endpoint they are sent in the post body otherwise in the query string. Usually with a 400 bad request.

Recommended Flows in OAuth 2.1

Here is probably the present.

Best Practices For Native Apps

Native Apps

Native Application or Public clients are apps which run on infrastructure not necessarily owned by the company. E.g. Web app, Mobile app and therefore they should not use the Native Flow. Native Applications

• Can
  • Make secure back channel requests
• Can't
  • Receive tokens via the browswer
  • Keep a secret (and be trusted)

Proof Key For Code Exchange (PKCE "Pixie")

This links the authorization request to the token request and is detailed in RFC 7636

Redirect URI Options

With the direct on a mobile there are three options list in order of preference

• Private-use URI Schema e.g. nz.co.bibble.linux:/callback
• Claimed https scheme
• Loopback device

Browsers

Embedded User-Agents

Try to avoid Embedded User-Agents (Browser). Risk include

• Keystrokes visible
• Cookies exposed
• Authorization process exploitable
• Increased attack surface
• Encourages phishing

Well know identity providers block embedded user agents and authorization server may do the same.

In-App Browsers

This is consider a safer approach as it is in the context application. See RFC 8525

Best Practices For Browser Based Apps

Browser Based Apps

This is where code runs in the end user browser. E.g. Single Page App. With Browser Apps

• Network calls are very visible (Dev Tools)
• Replaying is as simple as right clicking
• No Secure storage
• Open to token theft (Biggest risk)

OAuth in the Browser

It is recommended we use Authorization Code and PKCE and not use the Implicit Token.

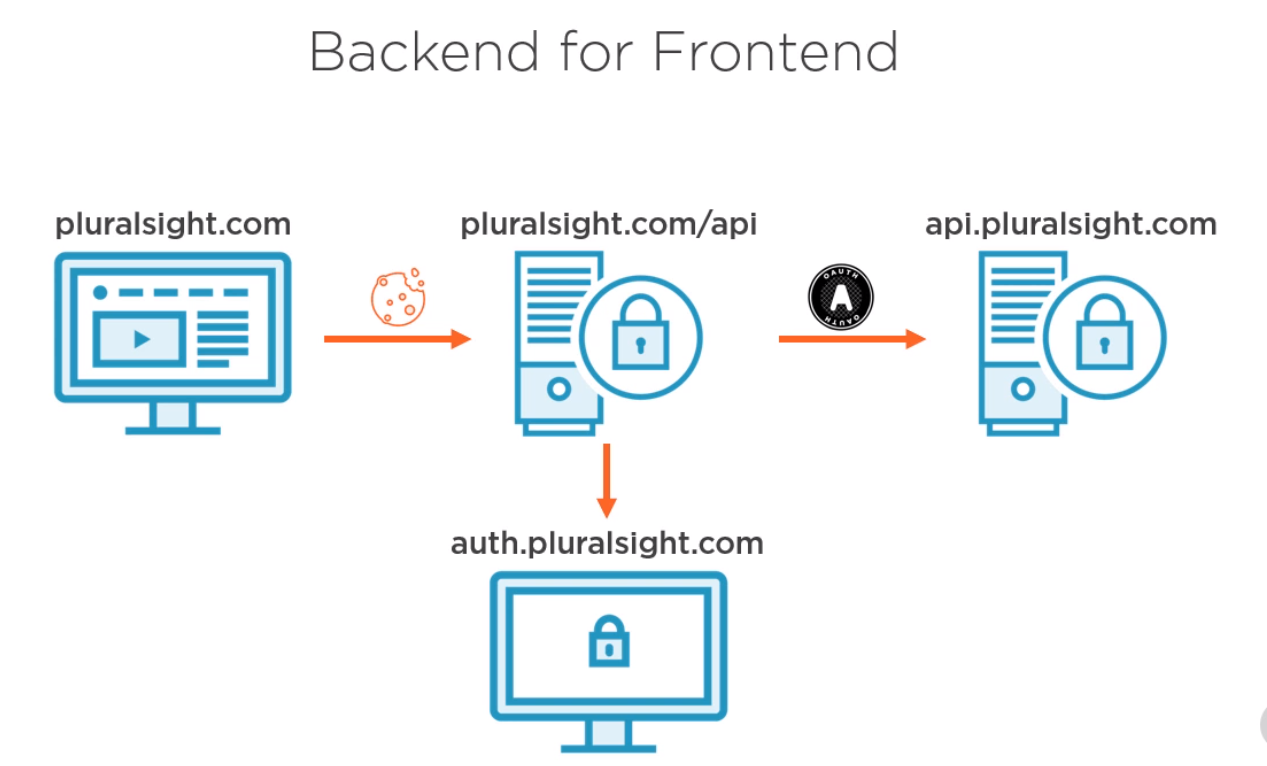

It you have an API shared across many applications it is recommended to use a backend frontend where the frontend uses an SameSite Cookie.

OAutu 2.0 Extensions

OpenID Connect 1.0 (OIDC)

OpenID Connect 1.0 (OIDC) Provides Identity built on OAuth 2.0

• • User Info
  • Identity Scopes
  • Identity Token (Jwt)

OAuth 2.0 Meta Data

This is always hosted on /.well-known/oauth-authorization-server and returns the functionality of the server. e.g.

• authorization endpoint
• token endpoint
• token endpoint auth method supported
• scopes_supported or
• response types supported

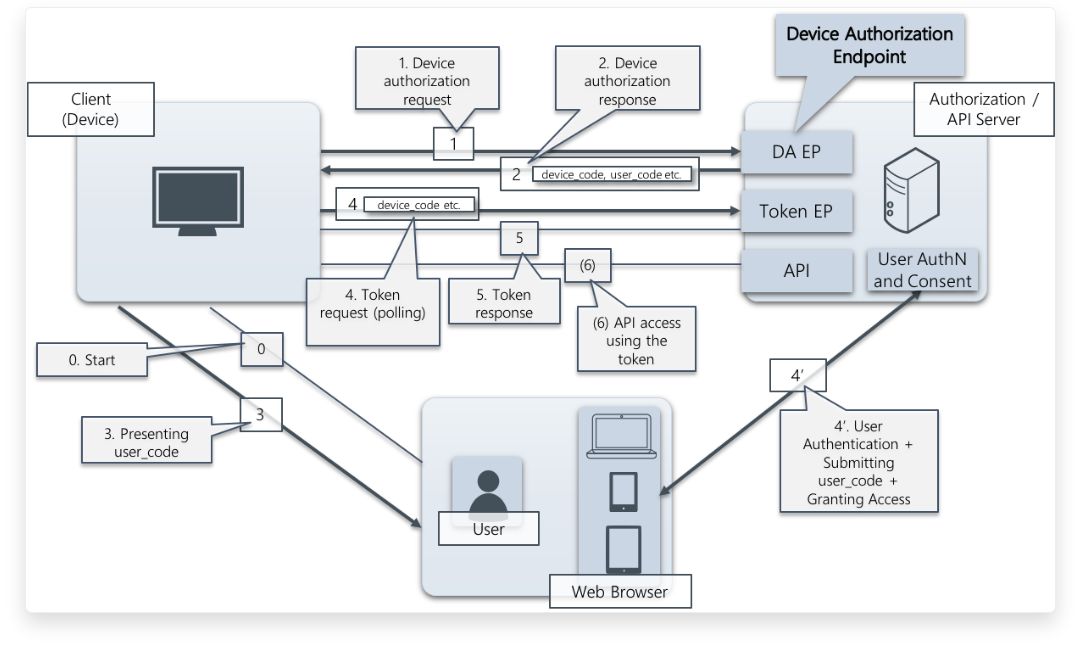

OAuth Device Flow

It defines an authorization flow (Device Flow) to issue access tokens for API clients running on devices with no Web browsers and/or that have limited capability for inputting text, with end user consent.

The device flow implies the following preconditions.

• User can use devices with Web browsers (e.g. PC, smartphones, tablets)
• Client (e.g. TV, appliances) is a device that can establish an outbound connection to the Internet
• Authorization Server (e.g. streaming service providers) exposes Device Authorization Endpoint to clients

• Client (device) sends a device authorization request to device authorization endpoint in Authorization Server.
• Authorization Server replies a device authorization response to Client. The response contains the following main parameters:
  • user_code: a value to be submitted from User to Authorization Server.
  • device_code: a value for Client to send a token request to Authorization Server.
• Client presents user_code to User.
• The following processes run simultaneously.
  • Client sends a token request that includes device_code to Authorization Server. The same requests are periodically made (i.e. polling) to Authorization Server until an access token (or an error) is returned.
  • User goes to Authorization Server using an Web browser, authenticates itself, submits user_code and grants access to Client.
• Authorization Server verifies the user_code, issues an access token and sends a token response including the token against the token request that contains the device_code that corresponds to the user_code.
