Introduction

Install the micro ros agent

sudo snap install micro-ros-agent
sudo snap set micro-ros-agent daemon=true
sudo systemctl restart snapd

Set up Environment Variables

Here are ones I use. I believe the build system rely on PICO_SDK_PATH and PICO_TOOLCHAIN_PATH

# Set up base directory
export PICO_ROOT=/home/$USER/dev/pico
export PICO_SDK_PATH=$PICO_ROOT/pico-sdk
export PICO_TOOLCHAIN_PATH=$PICO_ROOT/gcc-arm-none-eabi-10-2020-q4-major/bin

Get the compiler

This is how I got started.
Unzip and get the latest compiler from https://developer.arm.com/tools-and-software/open-source-software/developer-tools/gnu-toolchain/gnu-rm/downloads

I then extract it to $PICO_ROOT

Clone the SDK

Get the SDK

cd $PICO_ROOT
git clone --recurse-submodules https://github.com/raspberrypi/pico-sdk.git
git clone https://github.com/micro-ROS/micro_ros_raspberrypi_pico_sdk.git

Make the sample

It using CMake so we goto the source make a build directory and make. This should produce a file pico_micro_ros_example.uf2

cd $PICO_ROOT
cd micro_ros_raspberrypi_pico_sdk

mkdir build
cd build
cmake ..
make

Copy to device

So plug in the PICO holding down the boot button

cp pico_micro_ros_example.uf2 /media/$USER/RPI-RP2

New PICO Stuff

Spent lots of time doing lots of other stuff, ESP, learning React etc. Come back to PICO and this is note on this second view

Important

For a PICO to show up, you need to hold the BOOTSEL prior to plugging in the device. Release when powered and you should see

Bus 003 Device 004: ID 2e8a:0003 Raspberry Pi RP2 Boot

When you copy .uf2 software to the device /media/$USER/RPI-RP2/ the device will reboot and may or may not show up depending in what the software is. E.g.

cp ./blink.uf2 /media/$USER/RPI-RP2/

# No longer show device
# lsusb | grep 2e8a
# Disconnects but runs the software on the PICO (i.e. it starts blinking)
sudo dmesg

[80798.165244] FAT-fs (sdf1): unable to read boot sector to mark fs as dirty

Building MicroPython From Source

Revisiting build of this using the guild. Couple of glitches, repo was incorrect but this worked for me.

mkdir pico
cd pico
git clone  https://github.com/micropython/micropython
cd micropython/
cd lib/pico-sdk
git submodule update --init
# If required
# sudo apt install cmake gcc-arm-none-eabi build-essential
cd ../..
make -C mpy-cross
cd ports/rp2
make

Building picotool From Source

sudo apt install build-essential pkg-config libusb-1.0-0-dev
export PICO_SDK_PATH=/home/iwiseman/dev/projects/pico/pico/micropython/lib/pico-sdk

git clone https://github.com/raspberrypi/picotool
cd picotool
mkdir build
cd build
cmake ..
make
# optional
sudo cp /home/$USER/dev/projects/pico/pico/picotool/build/picotool /usr/bin/picotool

Using Ros 2 and Pico

Followed the instructions for https://ubuntu.com/blog/getting-started-with-micro-ros-on-raspberry-pi-pico and managed to get this to work.
Installed ROS on ubuntu 22.04 using https://docs.ros.org/en/rolling/Installation/Ubuntu-Install-Debians.html

This is important because I could not get the Pico to create a /dev/ttyACM0

Pico-Exampleas

Building

This took some time because I tried to build the examples individually.

# Clone and build
git clone https://github.com/raspberrypi/pico-examples
cd pico-examples
makedir build
cd build
cmake ..
make

Doing this with just an one example e.g.

cd hello_world/
mkdir build
cd build/
cmake ..

Results in the following error

CMake Warning (dev) in CMakeLists.txt:
  No project() command is present.  The top-level CMakeLists.txt file must
  contain a literal, direct call to the project() command.  Add a line of
  code such as

    project(ProjectName)

  near the top of the file, but after cmake_minimum_required().

  CMake is pretending there is a "project(Project)" command on the first
  line.
This warning is for project developers.  Use -Wno-dev to suppress it.

CMake Error at serial/CMakeLists.txt:9 (pico_add_extra_outputs):
  Unknown CMake command "pico_add_extra_outputs".

Serial vs USB

They look the same but they are not. Here is the difference in the USB makefiles

    # enable usb output, disable uart output
    pico_enable_stdio_usb(hello_usb 1)
    pico_enable_stdio_uart(hello_usb 0)

C++ Example

Create demo program

#include <stdio.h>
#include <pico/stdlib.h>

int main()
{
    stdio_init_all();

    while (true) {
        printf("Hello world\n");
        sleep_ms(1000);
    }
}

And a CMakefile

cmake_minimum_required(VERSION 3.13)

include($ENV{PICO_SDK_PATH}/external/pico_sdk_import.cmake)

project(myapp C CXX ASM)

set(CMAKE_C_STANDARD 11)
set(CMAKE_CXX_STANDARD 17)

pico_sdk_init()

add_executable(${PROJECT_NAME} main.c)

pico_add_extra_outputs(${PROJECT_NAME})

target_link_libraries(${PROJECT_NAME} pico_stdlib)

pico_enable_stdio_usb(${PROJECT_NAME} 1)
pico_enable_stdio_uart(${PROJECT_NAME} 0)

Create a build directory and build

mkdir build
cd build
cmake ..
make -j$(nproc)

Copying the software to the Pico and monitoring with screen gives

cp myapp.uf2  /media/iwiseman/RPI-RP2/

sudo screen /dev/ttyACM0 115200

Hello world
Hello world
Hello world
....
# CTRL+A \ to exit

LAN8720

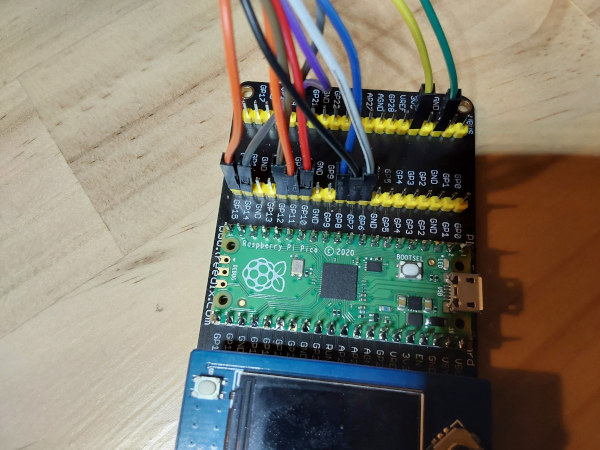

Put this up to remind me of my wiring it will be different next time. I like the groupings

Yellow VCC 3V3
Green GND GND
Purple nInt GP20

Red TX0 GP10
Orange 1 TX1 GP11
Brown TX_EN GP12

White RX0 GP6
Black RX1 GP7
Blue CRS GP8

Grey MDIO GP14
Orange 2 MDC GP15

PIO and the PICO

Sounds like a new book but this is reminding myself of the old C64 and assembly. Starting with the blink project and reading until tired.

Blink

Prerequisites

We need to have a working PICO sdk mine is in

PICO_SDK_PATH=/opt/pico/pico-sdk

CMake file

For CMake I have cmake 3.22.1

# Set minimum required version of CMake
cmake_minimum_required(VERSION 3.12)

# Include build functions from Pico SDK
include($ENV{PICO_SDK_PATH}/external/pico_sdk_import.cmake)
include($ENV{PICO_SDK_PATH}/tools/CMakeLists.txt)

# Set name of project (as PROJECT_NAME) and C/C   standards
project(blink C CXX ASM)
set(CMAKE_C_STANDARD 11)
set(CMAKE_CXX_STANDARD 17)

# Creates a pico-sdk subdirectory in our project for the libraries
pico_sdk_init()

# Tell CMake where to find the executable source file
add_executable(${PROJECT_NAME}
    src/main.c
)

# Create C header file with the name <pio program>.pio.h
pico_generate_pio_header(${PROJECT_NAME}
        ${CMAKE_CURRENT_LIST_DIR}/src/blink.pio
)

# Create map/bin/hex/uf2 files
pico_add_extra_outputs(${PROJECT_NAME})

# Link to pico_stdlib (gpio, time, etc. functions)
target_link_libraries(${PROJECT_NAME}
    pico_stdlib
    hardware_pio
)

# Enable usb output, disable uart output
pico_enable_stdio_usb(${PROJECT_NAME} 0)
pico_enable_stdio_uart(${PROJECT_NAME} 1)

C Code

Nothing special here

#include <stdio.h>
#include <stdbool.h>
#include <pico/stdlib.h>
#include <hardware/pio.h>
#include <blink.pio.h>

#define LED_BUILTIN 25

int main() {
  stdio_init_all();

  PIO pio = pio0;
  uint state_machine_id = 0;
  uint offset = pio_add_program(pio, &blink_program);

   blink_program_init(pio, state_machine_id, offset, LED_BUILTIN);

  while(1) {
    //do nothing
  }
}

PIO Code

This is the C64 bit you make a file call blink.pio which contains assembly and C-SDK bindings which seem like a bit of voodoo and hope to learn more. The assembly is straight forward.

.program blink

set pindirs, 1      ; Set pin to output
loop:
  set pins, 1 [31]  ; Drive pin high and then delay for 31 cycles
  set pins, 0 [31]  ; Drive pin low and then delay for 31 cycles
  jmp loop

% c-sdk {

static inline void blink_program_init(PIO pio, uint sm, uint offset, uint pin) {

  // 1. Define a config object
  pio_sm_config config = blink_program_get_default_config(offset);

  // 2. Set and initialize the output pins
  sm_config_set_set_pins(&config, pin, 1);

  // 3. Apply the configuration & activate the State Machine
  pio_sm_init(pio, sm, offset, &config);
  pio_sm_set_enabled(pio, sm, true);
}

%}

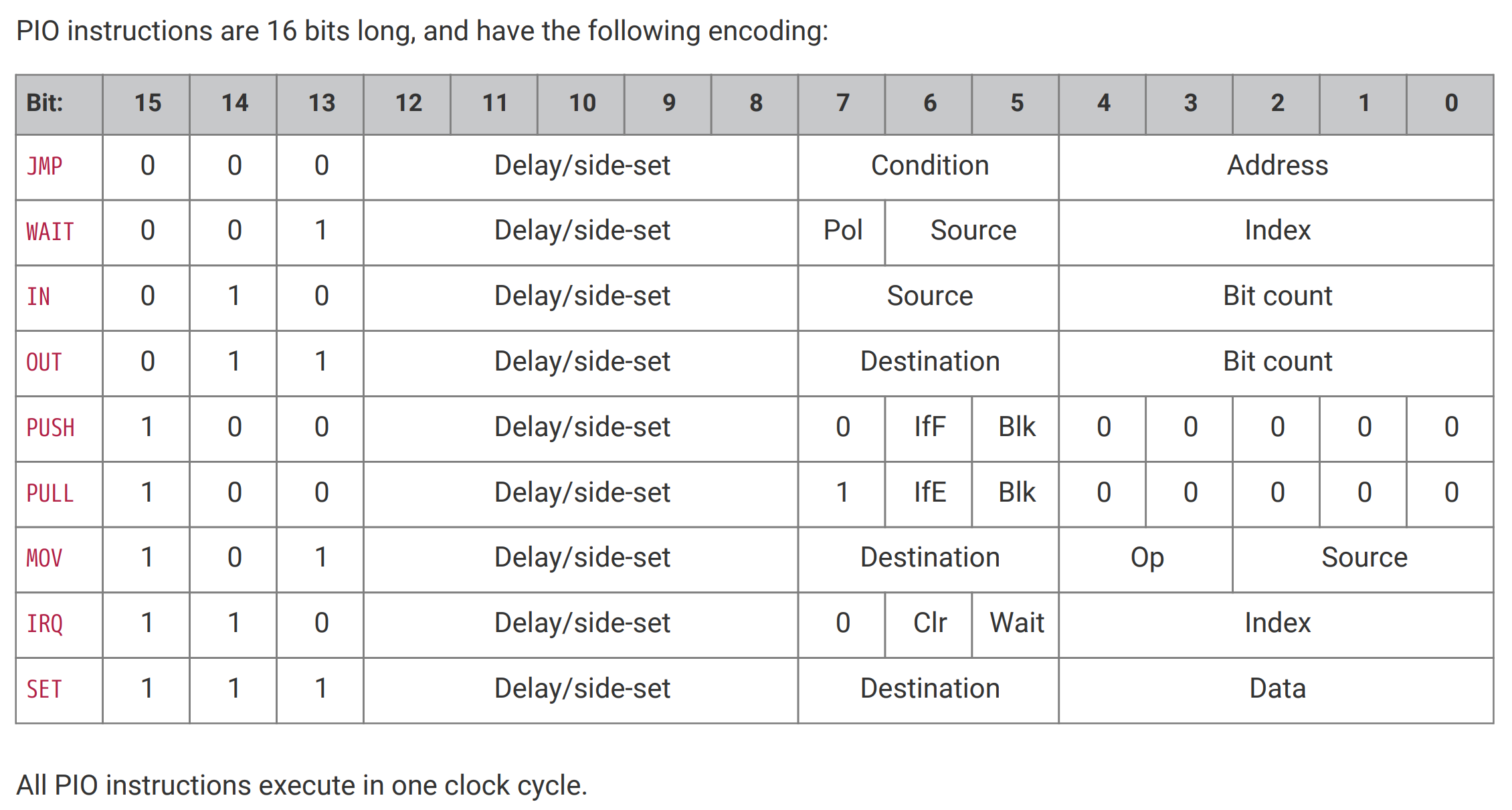

Breakdown of PIO Instructions

The SDK provides
Sebastian Günther breaks this down as

Program Structure

To structure your program in general, you have the following commands available.

.program NAME - the name of the program, and also the name of the header file that will be generated during compilation to give you access to the state machine in your main program

.define NAME VALUE - similar to your C program, you can define top-level constants that are visible in the state machine

LABEL: - labels are syntactic grouping of related statements. You can define any label, and then jump back to it
; COMMENT - Anything behind a semicolon is a comment
.wrap_target and .wrap - Instructions to repeatedly run a section of you PIO program
.word - Store a raw 16-bit value as instructions in the program (each PIO statement is a 16-bit value)
.side_set COUNT (opt) - This instruction additionally configures the SIDE pins of this program. The COUNT value is the number of bits that is reduced from the instruction, and the opt value determines whether side statements inside your PIO program are optional or mandatory. When you work with this declaration, then you can attach additional commands to all expressions, for example out x, 1 side 0 would shift one bite from the OSR to the FIFO RX, and set the SIDE pin to logic level LOW.

Move data inside the shift register

in SOURCE count - Shift data into the ISR, where SOURCE can be X, Y, OSR or ISR, and count is 0...32
out DESTINATION count - Shift data out of the OSR, to DESTINATION X, Y, ISR
mov DESTINATION, SOURCE - Move data from SOURCE (X, Y, OSR or ISR) to DESTINATION (X, Y, OSR or ISR)
set DESTIANTION, data - write a 5-bit data value to DESTIANTION (X, Y)

Move data between the shift register and the main program

pull - Load data from the TX FIFO into the OSR
push - Push data from the ISR to the RX FIFO, then clear the ISR
irq INDEX op - Modify the IRQ number index to be either cleared (op=0) or set (op=1)

Write data to GPIO pins

SET pins
set PINDIRS, 1 - define the configured SET pins as output pins
set PINS, value - write HIGH (value=1) or LOW (value=1) to the SET pins
OUT pins
mov PINS, SOURCE - write from SOURCE (X, Y, OSR, ISR) to OUT pins (X, Y, OSR or ISR)

Read data from GPIO pins

SET pins
set PINDIRS, 0 - define the configured SET pins as input pins
INPUT pins
mov DESTINATION, PINS - write from IN pins to DESTINATION (X, Y, OSR, ISR, and OUT PINS)

Conditional Statements

jmp CONDITION LABEL - go to LABEL when one the following type of CONDITION is true
!(X|Y|OSRE) - true when X, Y, OSR is empty
X-- | Y--) - true when scratch register is empty, otherwise decrement the scratch register
PIN - true when the JUMP pin is logic level HIGH
wait POLARITY TYPE NUMBER - delay the further processing until the POLARITY matches the ..
- pin NUMBER - INPUT pin
- gpio NUMBER - absolutely numbered gpio
- irq NUMBER - IRQ number (if POLARITY is 1, the IRQ number is cleared)
nop - Don’t do anything

Vodoo Part

Thanks again to Sebastian Günther here is a list of configurations you might like to use. Maybe I will uncover what these all mean as I go on my journey.

static inline void __program_init(PIO pio, uint sm, uint offset, uint in_pin, uint in_pin_count, uint out_pin, uint out_pin_count, float frequency) {

  // 1. Define a config object
  pio_sm_config config = __program_get_default_config(offset);

  // 2. Set and initialize the input pins
  sm_config_set_in_pins(&config, in_pin);
  pio_sm_set_consecutive_pindirs(pio, sm, in_pin, in_pin_count, 1);
  pio_gpio_init(pio, in_pin);

  // 3. Set and initialize the output pins
  sm_config_set_out_pins(&config, out_pin, out_pin_count);
  pio_sm_set_consecutive_pindirs(pio, sm, out_pin, out_pin_count, 0);

  // 4. Set clock divider
  if (frequency < 2000) {
    frequency = 2000;
  }
  float clock_divider = (float) clock_get_hz(clk_sys) / frequency * 1000;
  sm_config_set_clkdiv(&config, clock_divider);

  // 5. Configure input shift register
  // args: BOOL right_shift, BOOL auto_push, 1..32 push_threshold
  sm_config_set_in_shift(&config, true, false, 32);

  // 6. Configure output shift register
  // args: BOOL right_shift, BOOL auto_push, 1..32 push_threshold
  sm_config_set_out_shift(&config, true, false, 32);

  // 7. Join the ISR & OSR
  // PIO_FIFO_JOIN_NONE = 0, PIO_FIFO_JOIN_TX = 1, PIO_FIFO_JOIN_RX = 2
  sm_config_set_fifo_join(&config, PIO_FIFO_JOIN_NONE);

  // 8. Apply the configuration
  pio_sm_init(pio, sm, offset, &config);

  // 9. Activate the State Machine
  pio_sm_set_enabled(pio, sm, true);
}

PICO W

First foray into the pico W. Three things I initially had trouble with

turn on the serial ports or you don't have /dev/ttyACM0
make sure PICO_BOARD set correctly
make sure you copy a cmake that works. Mine was [here]

New Project

You need to copy these files before you start a project. Note

cp /opt/pico/pico-examples/pico_w/lwipopts_examples_common.h lwipopts.h
cp /opt/pico/pico-examples/pico_w/blink/CMakeLists.txt .

CMAKE

And here is the CMAKE.

cmake_minimum_required(VERSION 3.13)

include(pico_sdk_import.cmake)

project(pico-cpp C CXX)

SET(PICO_BOARD pico_w)
set(CMAKE_C_STANDARD 11)
set(CMAKE_CXX_STANDARD 17)

# initialize the Raspberry Pi Pico SDK
pico_sdk_init()

add_executable(pico-cpp src/main.cpp)

pico_add_extra_outputs(pico-cpp)

pico_enable_stdio_usb(pico-cpp 1)
pico_enable_stdio_uart(pico-cpp 1)

target_include_directories(pico-cpp PRIVATE ${CMAKE_CURRENT_LIST_DIR} )

target_link_libraries(pico-cpp pico_cyw43_arch_lwip_threadsafe_background pico_stdlib)

Code

#include <stdio.h>
#include "pico/stdlib.h"
#include "pico/cyw43_arch.h"

char ssid[] = "YOUR_SID";
char pass[] = "YOUR_PASSWORD";

int main() {
  printf("Iain was ere\n");

  stdio_init_all();

  if (cyw43_arch_init_with_country(CYW43_COUNTRY_UK)) {
    printf("failed to initialise\n");
    return 1;
  }
  printf("initialised\n");

  cyw43_arch_enable_sta_mode();

  if (cyw43_arch_wifi_connect_timeout_ms(ssid, pass, CYW43_AUTH_WPA2_AES_PSK, 10000)) {
    printf("failed to connect\n");
    return 1;
  }
  printf("connected\n");
}

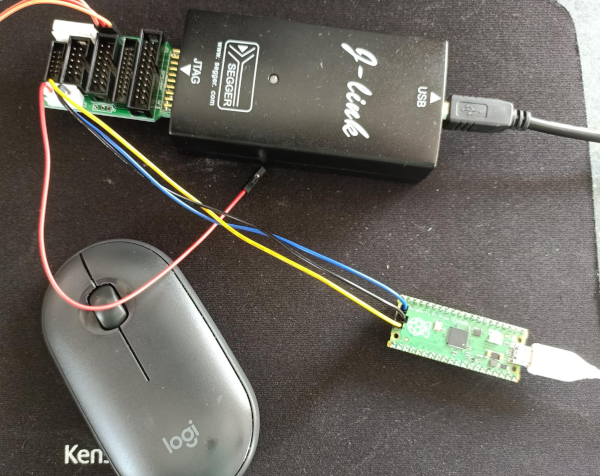

Debugging With J-Link

Using the command line

Took a weekend to get this going and still need to improve. Using a standard Pico I wired up a J-Link v9.

Eventually found that the pico needed a really good connection to work. When it failed the message was
Info : 240 18 arm_dap.c:337 handle_dap_init(): DAP init failed
Debug: 241 18 command.c:628 run_command(): Command 'dap init' failed with error code -4
So once I have built openocd from the raspberrypi branch using

git clone https://github.com/raspberrypi/openocd.git --depth=1 --no-single-branch
cd openocd
./bootstrap
./configure --enable-picoprobe ①
make -j4

We can upload myProject.elf to the pico with

openocd -s ~/dev/projects/pico/openocd/tcl -f interface/jlink.cfg -c "transport select swd" -c "adapter_khz 4000" -f target/rp2040.cfg  -c "program myProject.elf verify reset exit"

To start openocd

openocd -s ~/dev/projects/pico/openocd/tcl -f interface/jlink.cfg -c "transport select swd" -c "adapter_khz 6000" -f target/rp2040.cfg  -c "init; reset;"

This is what good looks like

Open On-Chip Debugger 0.11.0-g4f2ae61 (2022-11-13-18:17)
Licensed under GNU GPL v2
For bug reports, read
	http://openocd.org/doc/doxygen/bugs.html
swd
DEPRECATED! use 'adapter speed' not 'adapter_khz'
adapter speed: 6000 kHz

Info : Hardware thread awareness created
Info : Hardware thread awareness created
Info : RP2040 Flash Bank Command
Info : J-Link V9 compiled May  7 2021 16:26:12
Info : Hardware version: 9.60
Info : VTarget = 3.329 V
Info : clock speed 6000 kHz
Info : SWD DPIDR 0x0bc12477
Info : SWD DLPIDR 0x00000001
Info : SWD DPIDR 0x0bc12477
Info : SWD DLPIDR 0x10000001
Info : rp2040.core0: hardware has 4 breakpoints, 2 watchpoints
Info : rp2040.core1: hardware has 4 breakpoints, 2 watchpoints
Info : starting gdb server for rp2040.core0 on 3333
Info : Listening on port 3333 for gdb connections
Info : SWD DPIDR 0x0bc12477
Info : SWD DLPIDR 0x00000001
Info : Listening on port 6666 for tcl connections
Info : Listening on port 4444 for telnet connections

On a separate terminal start the debugger with

gdb-multiarch myProject.elf
target remote localhost:3333
Remote debugging using localhost:3333
warning: multi-threaded target stopped without sending a thread-id, using first non-exited thread
Note: automatically using hardware breakpoints for read-only addresses.
time_reached (t=...)
    at /opt/pico/pico-sdk/src/rp2_common/hardware_timer/include/hardware/timer.h:116
116	    uint32_t hi_target = (uint32_t)(target >> 32u);
(gdb) load
Loading section .boot2, size 0x100 lma 0x10000000
Loading section .text, size 0x4060 lma 0x10000100
Loading section .rodata, size 0xe2c lma 0x10004160
Loading section .binary_info, size 0x1c lma 0x10004f8c
Loading section .data, size 0x1ac lma 0x10004fa8
Start address 0x100001e8, load size 20820
Transfer rate: 23 KB/sec, 3470 bytes/write.
(gdb) c
Continuing.
target halted due to debug-request, current mode: Thread
xPSR: 0x01000000 pc: 0x0000012a msp: 0x20041f00

Thread 1 hit Breakpoint 1, main () at /home/iwiseman/dev/projects/pico/jtag/main.c:19
19	        sleep_ms(2000);
(gdb) p a
$1 = 170
(gdb) c
Continuing.
target halted due to debug-request, current mode: Thread
xPSR: 0x01000000 pc: 0x0000012a msp: 0x20041f00

Thread 1 hit Breakpoint 1, main () at /home/iwiseman/dev/projects/pico/jtag/main.c:19

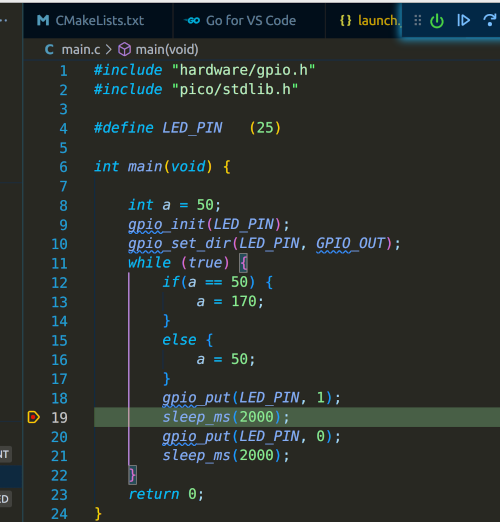

Using VSCode

Breakpoints

It appears that you cannot have too many breakpoints otherwise you see

Error: can't add breakpoint: resource not available
Error: Can not find free FPB Comparator!

C++ Config

Add this to settings.json makes the include issues disappear for me using CMake

{
    "C_Cpp.default.configurationProvider": "ms-vscode.cmake-tools"
}

Jlink

Again, never easy, but got it to work. Looking at the above there are two commands run between the interface and the target of the openocd command.

openocd -s ~/dev/projects/pico/openocd/tcl -f interface/jlink.cfg -c "transport select swd" -c "adapter_khz 4000" -f target/rp2040.cfg  -c "program myProject.elf verify reset exit"

It is apparently important the order of the arguments. So to get this to work these two commands need to run before rp2040.cfg. So to make this work you just edit the rp2040.cfg file and add these at the top.

transport select swd
adapter_khz 6000

source [find target/swj-dp.tcl]
source [find mem_helper.tcl]

set _CHIPNAME rp2040
set _CPUTAPID 0x01002927
set _ENDIAN little

swj_newdap $_CHIPNAME.core0 cpu -dp-id $_CPUTAPID -instance-id 0
swj_newdap $_CHIPNAME.core1 cpu -dp-id $_CPUTAPID -instance-id 1
....

So now we can run the debugger within vscode. You will need to amend you parameters appropriately. I copy the openocd and cp -rp the tcl directory.

{
  "version": "0.2.0",
  "configurations": [
    {
      "name": "openocd",
      "request": "launch",
      "type": "cortex-debug",
      "gdbPath" : "gdb-multiarch",
      "cwd": "${workspaceRoot}",
      "interface": "swd",
      "runToMain": true,
      "servertype": "openocd",
      "serverpath": "/opt/openocd/pico/bin/openocd",
      "executable": "${workspaceRoot}/build/myProject.elf",
      "searchDir": ["/opt/openocd/pico/tcl"],
      "preLaunchCommands": ["set mem inaccessible-by-default off"],
      "configFiles": ["interface/jlink.cfg","target/rp2040.cfg",],
      "showDevDebugOutput": false,
    }
  ]
}

And just for evidence

PicoProbe

This was the next attempt. For this approach we use the debugger externally. Make openocd in the normal way and from the root directory

export PATH=/home/iwiseman/dev/projects/rust/openocd/src:$PATH
src/openocd   -f interface/picoprobe.cfg -f target/rp2040.cfg -s tcl

Good output looks like this

Open On-Chip Debugger 0.11.0-g4f2ae61 (2022-12-25-15:22)
Licensed under GNU GPL v2
For bug reports, read
	http://openocd.org/doc/doxygen/bugs.html
Info : only one transport option; autoselect 'swd'
adapter speed: 5000 kHz
Info : Hardware thread awareness created
Info : Hardware thread awareness created
Info : RP2040 Flash Bank Command
Info : Listening on port 6666 for tcl connections
Info : Listening on port 4444 for telnet connections
Info : clock speed 5000 kHz
Info : SWD DPIDR 0x0bc12477
Info : SWD DLPIDR 0x00000001
Info : SWD DPIDR 0x0bc12477
Info : SWD DLPIDR 0x10000001
Info : rp2040.core0: hardware has 4 breakpoints, 2 watchpoints
Info : rp2040.core1: hardware has 4 breakpoints, 2 watchpoints
Info : starting gdb server for rp2040.core0 on 3333
Info : Listening on port 3333 for gdb connections

For vs code you need to use cortex debug and here is the launch.json

{
  // Use IntelliSense to learn about possible attributes.
  // Hover to view descriptions of existing attributes.
  // For more information, visit: https://go.microsoft.com/fwlink/?linkid=830387
  "version": "0.2.0",
  "configurations": [
    {
      "name": "Debug rp2040-project-template",
      "request": "launch",
      "type": "cortex-debug",
      "cwd": "${workspaceRoot}",
      "executable": "${workspaceFolder}/build/mma845.elf",
      "servertype": "external",
      "gdbPath": "gdb-multiarch",

      // Connect to an already running OpenOCD instance
      "gdbTarget": "localhost:3333",

      "svdFile": "${env:PICO_SDK_PATH}/src/rp2040/hardware_regs/rp2040.svd",
      "runToEntryPoint": "main",
      "preLaunchCommands": [
        "monitor init",
        "monitor reset init",
        "monitor halt"
      ],
      // Work around for stopping at main on restart
      "postRestartCommands": [
        "break main",
        "continue",
        "help",
        "help",
        "clear main"]
    }
  ]
}

BME280

Logic Analyzer

I finally bought a logic analyser and look at how to use it.

Connect GND and the pins interested in.
Start Pulseview
Select driver my case fx2lafw
Set sample rate and frequency (hover will tell you the sample time
Hit the run button

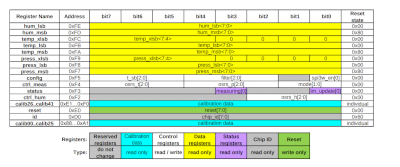

BME280 Datasheet

Never read one of these but eventually got the hang of it. The [document] provides a list of registers you need to read to calculate the values. Here are the temperature values

For i2c, to read the temperatures you use the following code for arduino

uint8_t readRegister(uint8_t offset)
{
  uint8_t result;
  uint8_t numBytes = 1;

  Wire.beginTransmission(BME280_I2C_ADDRESS);
  Wire.write(offset);
  Wire.endTransmission();

  Wire.requestFrom(BME280_I2C_ADDRESS, numBytes);
  while ( Wire.available() )
  {
    result = Wire.read();
    Serial.println(result, HEX);
  }

  return result;
}

The BME280_I2C_ADDRESS is the i2c Id in this case 0x76 and the offset is the offset from the datasheet. For the BME280 you have. Calibration value T1, T2, T3 and the raw temperature. Reading the docs they provide the code to get the value. Spent sometime trying to understand why this was without success but this equated to

  // Calibration value T1, T2, T3
  uint8_t dig_T1a = readRegister(BME280_DIG_T1_MSB_REG);
  uint8_t dig_T1b = readRegister(BME280_DIG_T1_LSB_REG);

  int8_t dig_T2a = readRegister(BME280_DIG_T2_MSB_REG);
  int8_t dig_T2b = readRegister(BME280_DIG_T2_LSB_REG);

  int8_t dig_T3a = readRegister(BME280_DIG_T3_MSB_REG);
  int8_t dig_T3b = readRegister(BME280_DIG_T3_LSB_REG);

  uint16_t dig_T1 = ((uint16_t)((dig_T1a << 8) + dig_T1b));
  int16_t dig_T2 = ( (int16_t)((dig_T2a << 8) + dig_T2b));
  int16_t dig_T3 = ( (int16_t)((dig_T3a << 8) + dig_T3b));

  // Received in 20-bits
  // Move 8 bits right to position (bits 19-12)
  // Move 8 bits right to position (bits 11-4)
  // Move 4 bits left to  position (bits 3-0)
  int32_t adc_T = ((uint32_t)readRegister(BME280_TEMPERATURE_MSB_REG) << 12) | ((uint32_t)readRegister(BME280_TEMPERATURE_LSB_REG) << 4) | (( readRegister(BME280_TEMPERATURE_XLSB_REG) >> 4) & 0x0F);

  int32_t ADCa = adc_T>>3;
  int32_t ADCb = adc_T>>4;

  int32_t T1a = (int32_t)dig_T1<<1;
  int32_t T1b = (int32_t)dig_T1;
  int32_t T2 = (int32_t)dig_T2;
  int32_t T3 = (int32_t)dig_T3;

  int64_t var1a = ( (ADCa - T1a)   * T2 ) >> 11;
  int64_t var2a = (((  (ADCb - T1b) * (ADCb - T1b) ) >> 12 ) * T3 ) >> 14;

  int32_t t_fine = var1a + var2a;

  float output = (t_fine * 5 + 128) >> 8;
  output = output / 100;

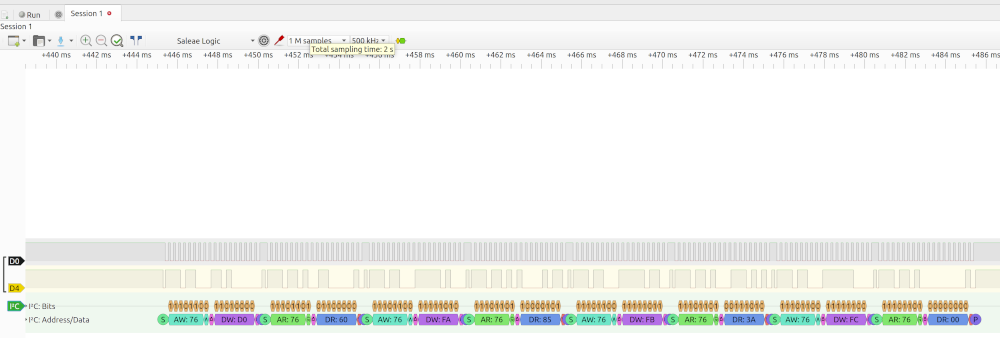

Using Pulseview with BME280

This device is an i2c device and has the ID of 0x76. Below is the capture when reading the raw value for the temperature (0xFA, 0xFB, 0xFC).

The trick is probably to know the registers you are interested

Using MAX98357 I2S


# SPDX-FileCopyrightText: 2021 Kattni Rembor for Adafruit Industries
#
# SPDX-License-Identifier: MIT

"""
CircuitPython I2S MP3 playback example.
Plays a single MP3 once.
"""
import board
import audiomp3
import audiobusio

audio = audiobusio.I2SOut(board.GP0, board.GP1, board.GP2)

mp3 = audiomp3.MP3Decoder(open("slow.mp3", "rb"))

audio.play(mp3)
while audio.playing:
    pass

print("Done playing!")

Just a bit about bits

In the example above we use the rol operator

  // Move 8 bits right to position (bits 19-12)
  // Move 8 bits right to position (bits 11-4)
  // Move 4 bits left to  position (bits 3-0)
  int32_t adc_T = ((uint32_t)readRegister(BME280_TEMPERATURE_MSB_REG) << 12) | ((uint32_t)readRegister(BME280_TEMPERATURE_LSB_REG) << 4) | (( readRegister(BME280_TEMPERATURE_XLSB_REG) >> 4) & 0x0F);

The data from the datasheet says the value for temperature is held in 20 bits. We use the rol operation to move the bits to the position we need. The first add 12 zeros to the end of the value. So if the first value was

11000001

the new value after rol operator will be

 11000001000000000000

and if the second value was

11001100
