Resource

During the course there were demo server APIs
https://github.com/alex-wolf-ps/RetrofitAPINode
https://github.com/alex-wolf-ps/RetrofitAPIDotnet
https://github.com/alex-wolf-ps/AndroidGlobomanticsApp

Getting Started

Permissions

We need to allow apps to use the internet so we need to add permissions to the manifest.

<uses-permission android:name="android.permission.INTERNET" />

Add Retrofit and Gson to Gradle

In the app gradle add

    implementation group: 'com.squareup.retrofit2', name: 'retrofit', version: '2.8.0'
    implementation group: 'com.squareup.retrofit2', name: 'converter-gson', version: '2.9.0'

Making a Request

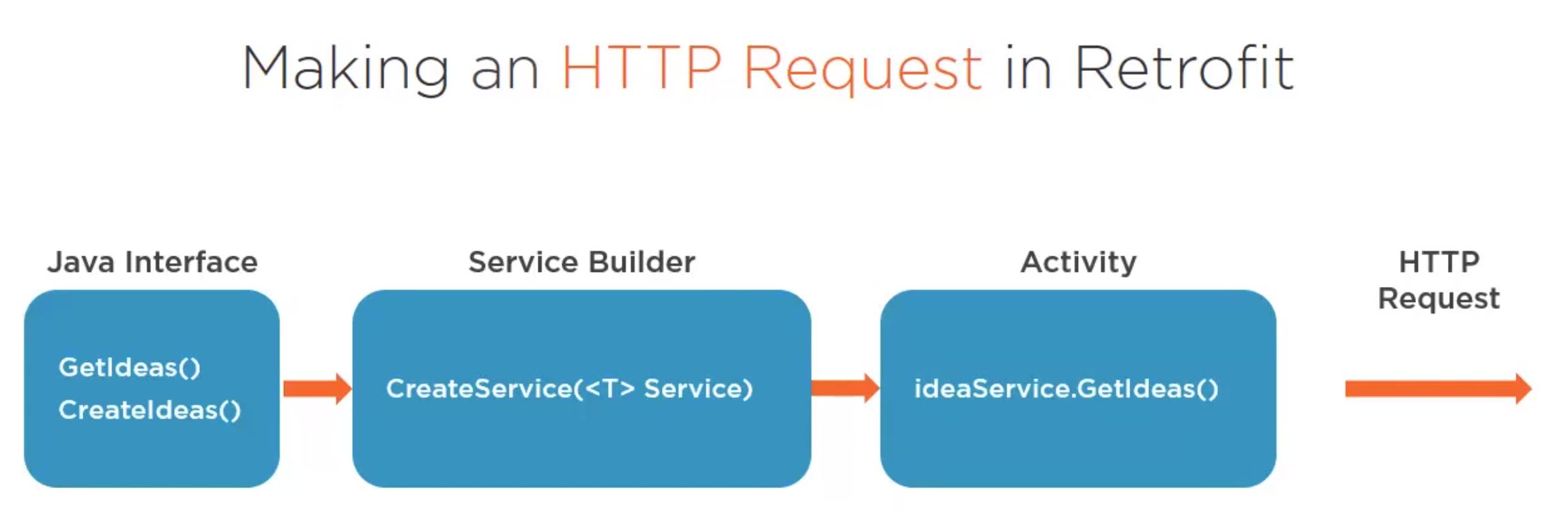

Introduction

To do this we need to do three steps

Step 1 Define the interface

interface ContractService {
    @GET("contacts")
    Call<List<Idea>> getContacts()

    @POST("contract")
    Call<Idea> createContract(@Body Contact contact)

    @PUT("contracts")
    Call<Idea> updateContract(@Body Contact contact)

    @DELETE("contracts")
    Call<Idea> updateContract(@Path("id") int contactId)
}

Step 2 Configuring and Building the Service

We need to create a Build and Retrofit class

Build Class, defines the configurations
Retrofit Class, creates instances of the service

Step 3 Send And Receive

We can then use the service. For this we need to implement a

Success Handler
Error Handler

ideaService.getIdeas()

Worked Example 1

Here is a worked example

Step 1 Define the interface

Create create an interface which contains the end points for a collection of APIs

public interface MessageService{
    @GET("messages")
    fun getMessages(): Call<String>
}

Step 2 Configuring and Building the Service

    private const val URL = "http://10.0.2.2:9000/"

    private val builder = Retrofit.Builder().baseUrl(URL)
            .addConverterFactory(GsonConverterFactory.create())

    private val retrofit = builder.build()

    fun <S> buildService(serviceType: Class<S>?): S {
        return retrofit.create(serviceType)
    }

I use genymotion for speed when doing x86 projects so the local host for me was 192.168.56.1, and obtained using

ip a |grep vb

Step 3 Send And Receive

Within the activity we

create an instance to the service.
use the service
handle the response and failure

        val taskService = buildService(MessageService::class.java)
        val call = taskService.getMessages()
        call.enqueue(object : Callback<String?> {
            override fun onResponse(request: Call<String?>, response: Response<String?>) {
                (findViewById<View>(R.id.message) as TextView).text = response.body()
            }

            override fun onFailure(request: Call<String?>, t: Throwable) {
                (findViewById<View>(R.id.message) as TextView).text = "Request Failed"
            }
        })

Worked Example 2

This is take from the bibbleCovid.

Step 1 Define the interface

interface BibbleCovidApi {

    @GET("covid/populations")
    fun getListPopulationCount(): Single<List<PopulationCountDTO>>
}

Step 2 Configuring and Building the Service

We going to be

Creating a OkHttp client, this provides
Creating a Retrofit instance with ReactiveX

Creating a OkHttp client

We create our own client because it provides better debugging tools and configuration, including

timeouts
Stetho Interceptor https://github.com/facebookarchive/stetho
Chuck Interceptor https://github.com/jgilfelt/chuck

open class OkHttpClientFactory {

    open fun createOkHttpClient(context: Context): OkHttpClient =
        OkHttpClient.Builder()
            .apply {
                if (BuildConfig.DEBUG) {
                    enableDebugTools(context)
                }
                updateTimeout()
            }
            .build()

    private fun OkHttpClient.Builder.enableDebugTools(context: Context) {
        addInterceptor(StethoInterceptor())
        addInterceptor(ChuckInterceptor(context))
    }

    private fun OkHttpClient.Builder.updateTimeout(read: Long = 60, write: Long = 60) {
        readTimeout(read, TimeUnit.SECONDS)
        writeTimeout(write, TimeUnit.SECONDS)
    }
}

Creating a Retrofit

object RetrofitFactory {

    // Base URL: always ends with /
    private const val URL_MAIN_WEBSERVICE = "https://api.bibble.co.nz/"

    /**
     * Get [Retrofit] instance.
     * @return instances of [Retrofit]
     */
    @RequiresPermission(value = Manifest.permission.INTERNET)
    fun getRetrofit(
        context: Context,
        gson: Gson,
        okHttpClientFactory: OkHttpClientFactory
    ): Retrofit =
        Retrofit.Builder()
            .addCallAdapterFactory(RxJava3CallAdapterFactory.create())
            .addConverterFactory(GsonConverterFactory.create(gson))
            .baseUrl(URL_MAIN_WEBSERVICE)
            .client(okHttpClientFactory.createOkHttpClient(context))
            .build()
}

Step 3 Send And Receive

Adding Logging

Cannot believe the demo suggested logging can be a dry subject. Has to be the most important part of using new frameworks. Without the logging it is impossible to progress. Here goes - sorry about the rant.
For gradle we add

    implementation 'com.squareup.okhttp3:logging-interceptor:3.9.0'
    implementation 'com.squareup.okhttp3:logging-interceptor:4.9.0'

Now like Angular we add the use of the interceptors (UFO)

    private static HttpLoggingInterceptor logger =
            new HttpLoggingInterceptor().setLevel(HttpLoggingInterceptor.Level.BODY);

    // Create OkHttp Client
    private static OkHttpClient.Builder okHttp =
            new OkHttpClient.Builder().addInterceptor(logger);

We need to also add the okHttp to our builder retrofit builder too

    private val builder = Retrofit.Builder().baseUrl(URL)
            .addConverterFactory(GsonConverterFactory.create()).client(okHttp.build())

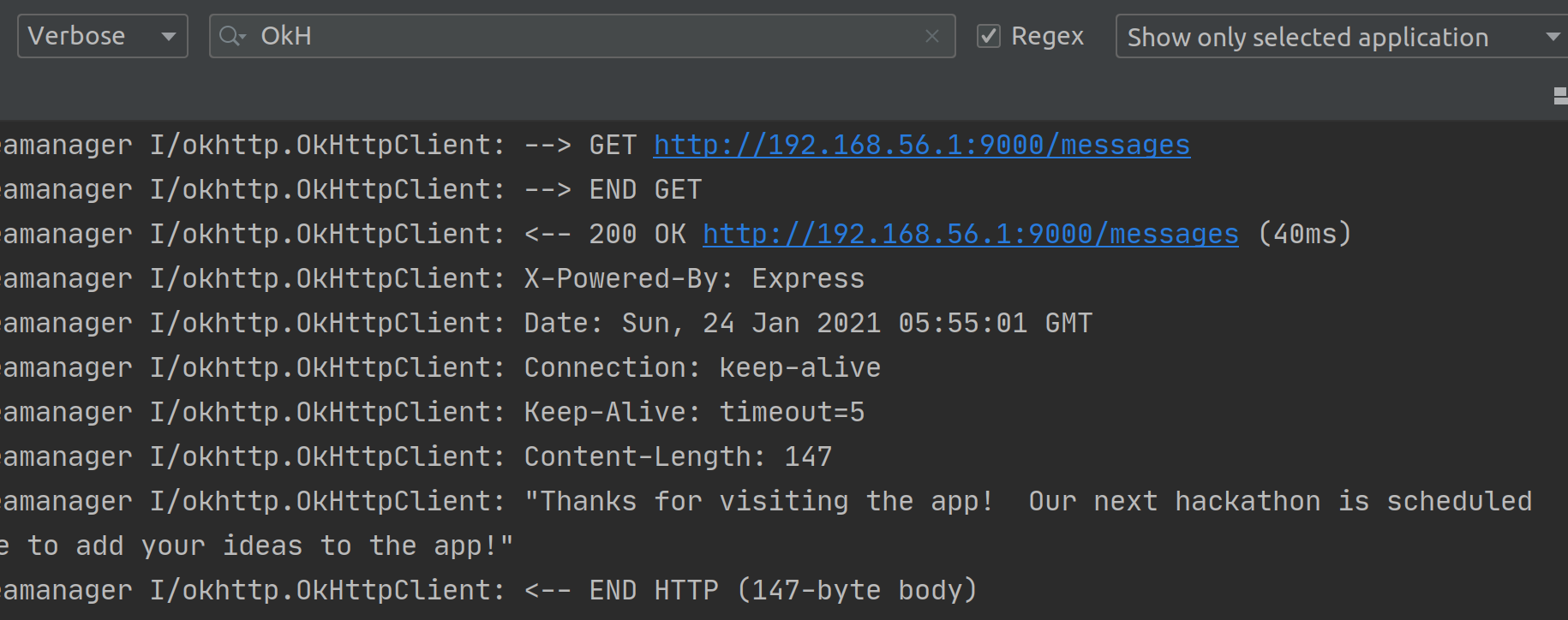

We can now see useful logs in the logcat

Parameters

Path Parameters

Path Parameters populate URL segment placeholders.

public interface IdeaService {
...
    @GET("ideas/{id}")
    fun getIdea(@Path("id") ideaId: Int): Call<Idea?>
}

Query Parameters

Query Parameters are automatically appended to the end of the URL

public interface IdeaService {
...
    @GET("ideas")
    fun getIdeas(@Query("status") status: String): Call<List<Idea?>?>
}

Combining

We can group these together

    @GET("ideas/{id}")
    fun getIdeas(
          @Path("id") ideaId: Int,
          @Query("status") status: String): Call<List<Idea?>?>

Or better still we can provide a query map which provides a named list of parameters

    @GET("ideas")
    fun getIdeas(@QueryMap parameters: Map<String, String>): Call<List<Idea?>?>

Example of using the QueryMap Filter

So below is an example filter using a map. Here is the interface

    @GET("ideas")
    fun getIdeas(@QueryMap owner: HashMap<String?, String?>?): Call<List<Idea?>?>?

And here is the code

...
    val filterMap = HashMap<String?, String?>()
    filterMap["owner"] = "Jim"
    filterMap["count"] = "1"
    val ideaService = buildService(IdeaService::class.java)
    val request = ideaService.getIdeas(filterMap)
    request?.enqueue(object : Callback<List<Idea?>?> {
       override fun onResponse(request: Call<List<Idea?>?>, response: Response<List<Idea?>?>) {
            recyclerView.adapter = SimpleItemRecyclerViewAdapter(response.body() as List<Idea>)
       }
       override fun onFailure(request: Call<List<Idea?>?>, t: Throwable) {
           (findViewById<View>(R.id.message) as TextView).text = "Request Failed"
       }
    })

Example CRUD Operations

GET

Service

    @GET("ideas/{id}")
    fun getIdea(@Path("id") ideaId: Int): Call<Idea?>

Implementation

            val ideaService = buildService(IdeaService::class.java)
            val request = ideaService.getIdea(arguments.getInt(ARG_ITEM_ID))
            request.enqueue(object : Callback<Idea?> {
                override fun onResponse(request: Call<Idea?>, response: Response<Idea?>) {
                    mItem = response.body()
                    ideaName.setText(mItem!!.name)
                    ideaDescription.setText(mItem!!.description)
                    ideaOwner.setText(mItem!!.owner)
                    ideaStatus.setText(mItem!!.status)
                    if (appBarLayout != null) {
                        appBarLayout.title = mItem!!.name
                    }
                }

                override fun onFailure(request: Call<Idea?>, t: Throwable) {
                    Toast.makeText(context, "Failed to retrieve item.", Toast.LENGTH_SHORT).show()
                }
            })

POST

Service

    @POST("ideas")
    fun createIdea(@Body newIdea: Idea?): Call<Idea?>?

Implementation

        val createIdea = findViewById<View>(R.id.idea_create) as Button
        val ideaName = findViewById<View>(R.id.idea_name) as EditText
        val ideaDescription = findViewById<View>(R.id.idea_description) as EditText
        val ideaOwner = findViewById<View>(R.id.idea_owner) as EditText
        val ideaStatus = findViewById<View>(R.id.idea_status) as EditText
        createIdea.setOnClickListener {
            val newIdea = Idea()
            newIdea.name = ideaName.text.toString()
            newIdea.description = ideaDescription.text.toString()
            newIdea.status = ideaStatus.text.toString()
            newIdea.owner = ideaOwner.text.toString()
            val ideaService = buildService(IdeaService::class.java)
            val request: Call<Idea> = ideaService.createIdea(newIdea)
            request.enqueue(object : Callback<Idea?> {
                override fun onResponse(request: Call<Idea?>, response: Response<Idea?>) {
                    val intent = Intent(mContext, IdeaListActivity::class.java)
                    startActivity(intent)
                }

                override fun onFailure(request: Call<Idea?>, t: Throwable) {
                    Toast.makeText(mContext, "Failed to create item.", Toast.LENGTH_SHORT).show()
                }
            })

PUT

This example shows how to use Url encoded.

Service

    @FormUrlEncoded
    @PUT("ideas/{id}")
    fun updateIdea(
        @Path("id")id: Int,
        @Field("name")name: String,
        @Field("description")desc: String,
        @Field("status")status: String,
        @Field("owner")owner: String): Call<Idea?>?

Implementation

            val ideaService = buildService(IdeaService::class.java)
            val request = ideaService.updateIdea(
                    arguments.getInt(ARG_ITEM_ID),
                    ideaName.text.toString(),
                    ideaDescription.text.toString(),
                    ideaStatus.text.toString(),
                    ideaOwner.text.toString()
            )

            request!!.enqueue(object : Callback<Idea?> {
                override fun onResponse(request: Call<Idea?>, response: Response<Idea?>) {
                    val intent = Intent(context, IdeaListActivity::class.java)
                    startActivity(intent)
                }

                override fun onFailure(request: Call<Idea?>, t: Throwable) {
                    Toast.makeText(context, "Failed to retrieve item.", Toast.LENGTH_SHORT).show()
                }
            })

DELETE

Service

    @DELETE("ideas/{id}")
    fun deleteIdea(@Path("id")id: Int): Call<Void>

Implementation

            deleteRequest.enqueue(object : Callback<Void?> {
                override fun onResponse(request: Call<Void?>, response: Response<Void?>) {
                    val intent = Intent(context, IdeaListActivity::class.java)
                    startActivity(intent)
                }

                override fun onFailure(request: Call<Void?>, t: Throwable) {
                    Toast.makeText(context, "Failed to delete item.", Toast.LENGTH_SHORT).show()
                }
            })        }

Other Stuff

Headers Basic

We can add static headers to the requests using the @Headers annotation @Headers({

       "Accept: application/json",
       "User-Agent: Your-App-Name",
       "Cache-Control: max-age=640000"
   })

Headers Map

val header = HashMap<String, String>()
    header["Accept"] = "application/json"
    header["Content-Type"] = "application/json"
    header["Authorization"] = "userToken"

// On the request
@POST("addresses")
    fun newAddress(@
          HeaderMap headers: Map<String, String>,
          @Body body: NewAddressBody): Single<Response<NewAddressResponse>>

Interceptors

Like angular we can create interceptors to add data to headers. Just like angular the ordering for these are important

                    .addInterceptor(new Interceptor() {
                        @Override
                        public Response intercept(Chain chain) throws IOException {
                            Request request = chain.request();

                            request = request.newBuilder()
                                    .addHeader("x-device-type", Build.DEVICE)
                                    .addHeader("Accept-Language", Locale.getDefault().getLanguage())
                                    .build();

                            return chain.proceed(request);
                        }
                    })

Timeouts

We can add timeouts and I am sure many other others.

    // Create OkHttp Client
    private val okHttp: OkHttpClient.Builder = OkHttpClient.Builder()
            .readTimeout(15, TimeUnit.SECONDS)
            .addInterceptor(Interceptor { chain ->
                var request = chain.request()
                request = request.newBuilder()
                        .addHeader("x-device-type", Build.DEVICE)
                        .addHeader("Accept-Language", Locale.getDefault().language)
                        .build()
                chain.proceed(request)
            })
            .addInterceptor(logger)

Cancelling Requests

To cancel a request we just call cancel on the request and the request will go to the onFailure branch.e.g

request.cancel()

Overriding Url

Not sure why this is in retrofit but here it is. We can override the Url for a service with the Url annotation

val call = taskService.getMessages("http://192.168.56.1:9000/messages")
...
interface MessageService {
    @GET
    fun getMessages(@Url altUrl: String?): Call<String?>?
}

Retrofit

Resource

Getting Started

Permissions

Add Retrofit and Gson to Gradle

Making a Request

Introduction

Step 1 Define the interface

Step 2 Configuring and Building the Service

Step 3 Send And Receive

Worked Example 1

Step 1 Define the interface

Step 2 Configuring and Building the Service

Step 3 Send And Receive

Worked Example 2

Step 1 Define the interface

Step 2 Configuring and Building the Service

Creating a OkHttp client

Creating a Retrofit

Step 3 Send And Receive

Adding Logging

Parameters

Path Parameters

Query Parameters

Combining

Example of using the QueryMap Filter

Example CRUD Operations

GET

Service

Implementation

POST

Service

Implementation

PUT

Service

Implementation

DELETE

Service

Implementation

Other Stuff

Headers Basic

Headers Map

Interceptors

Timeouts

Cancelling Requests

Overriding Url

Navigation menu

Search
